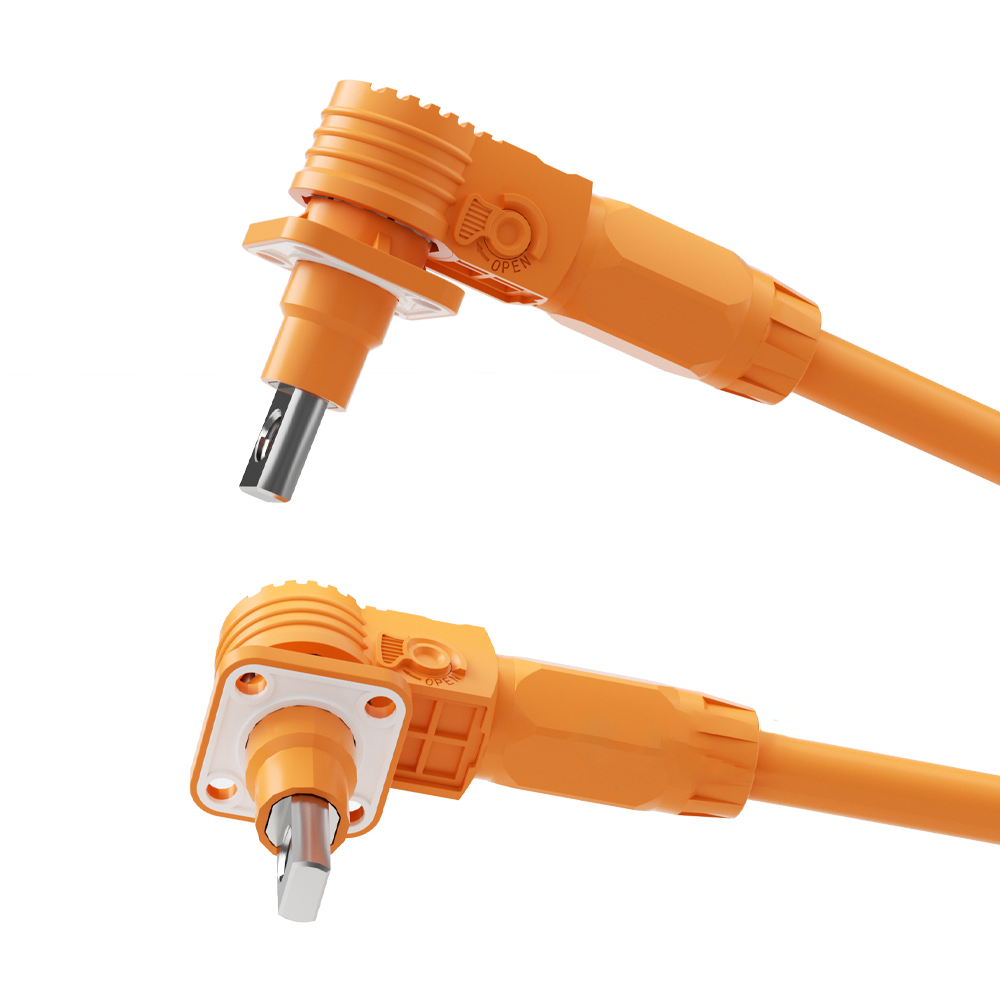

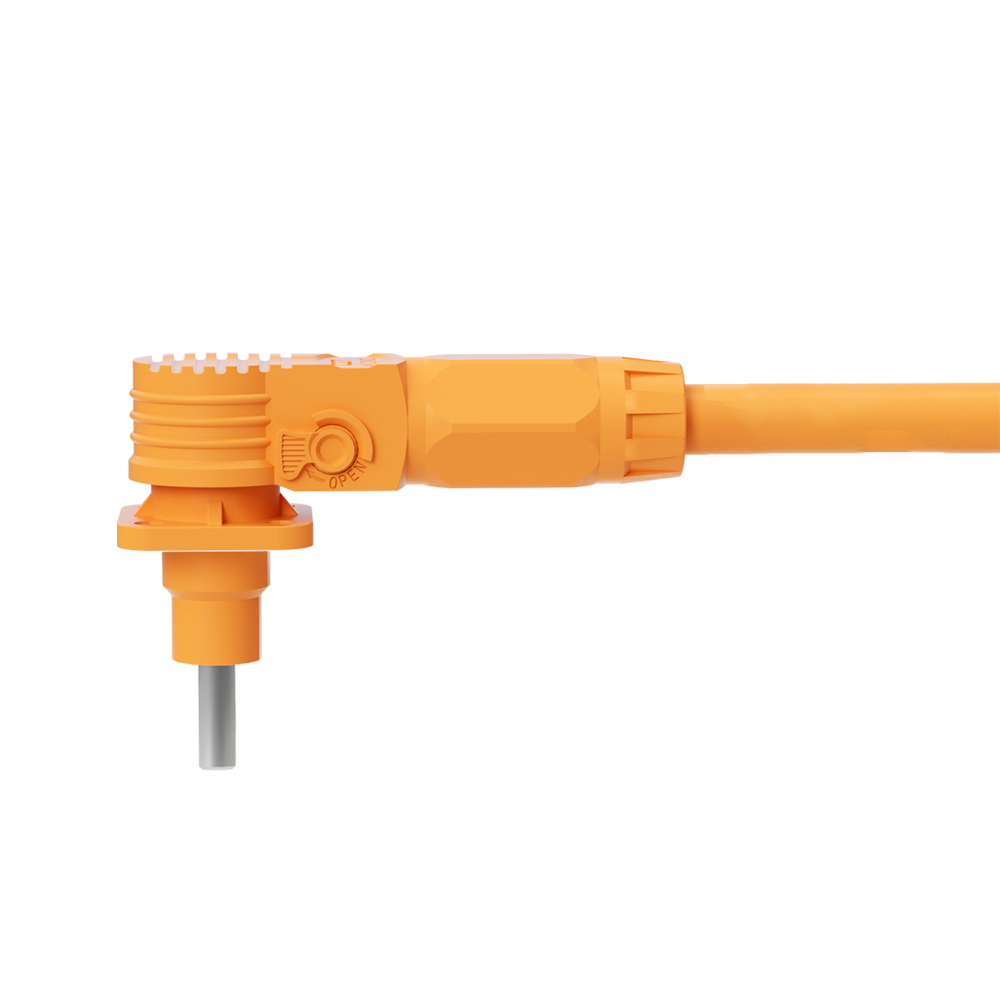

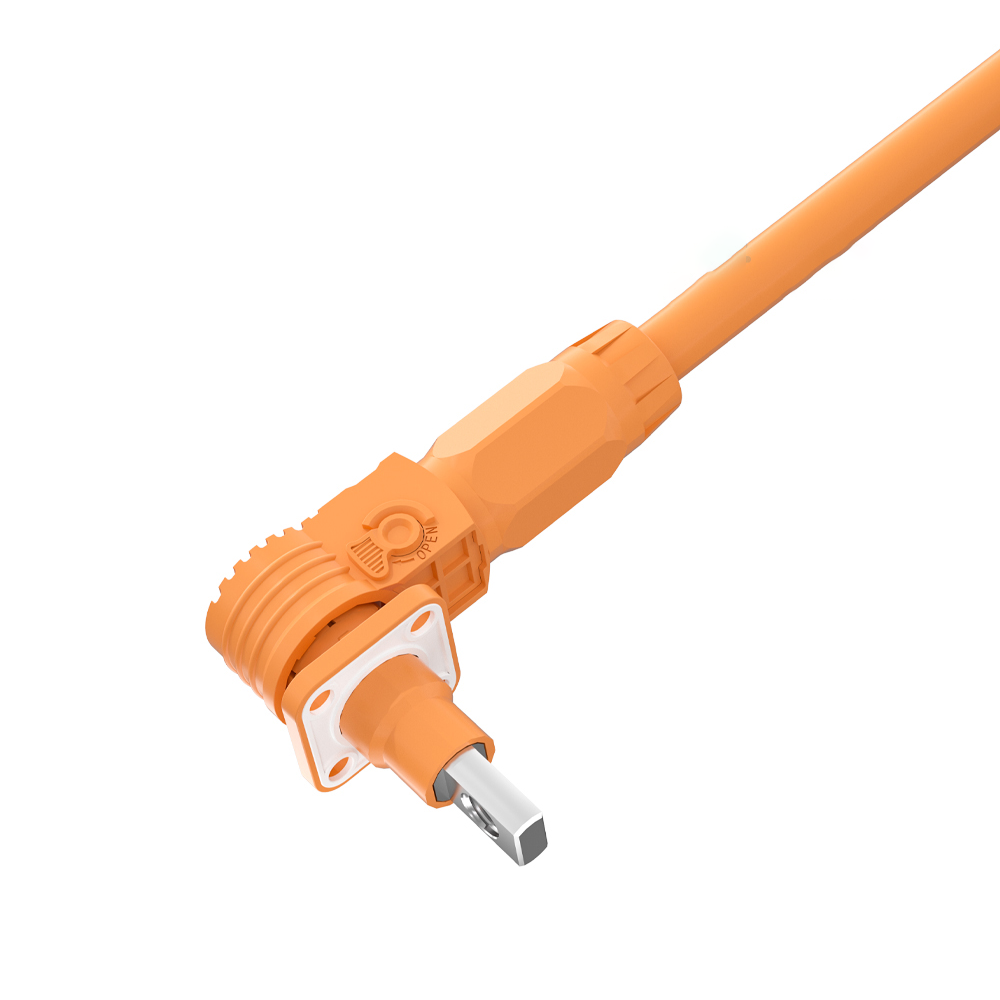

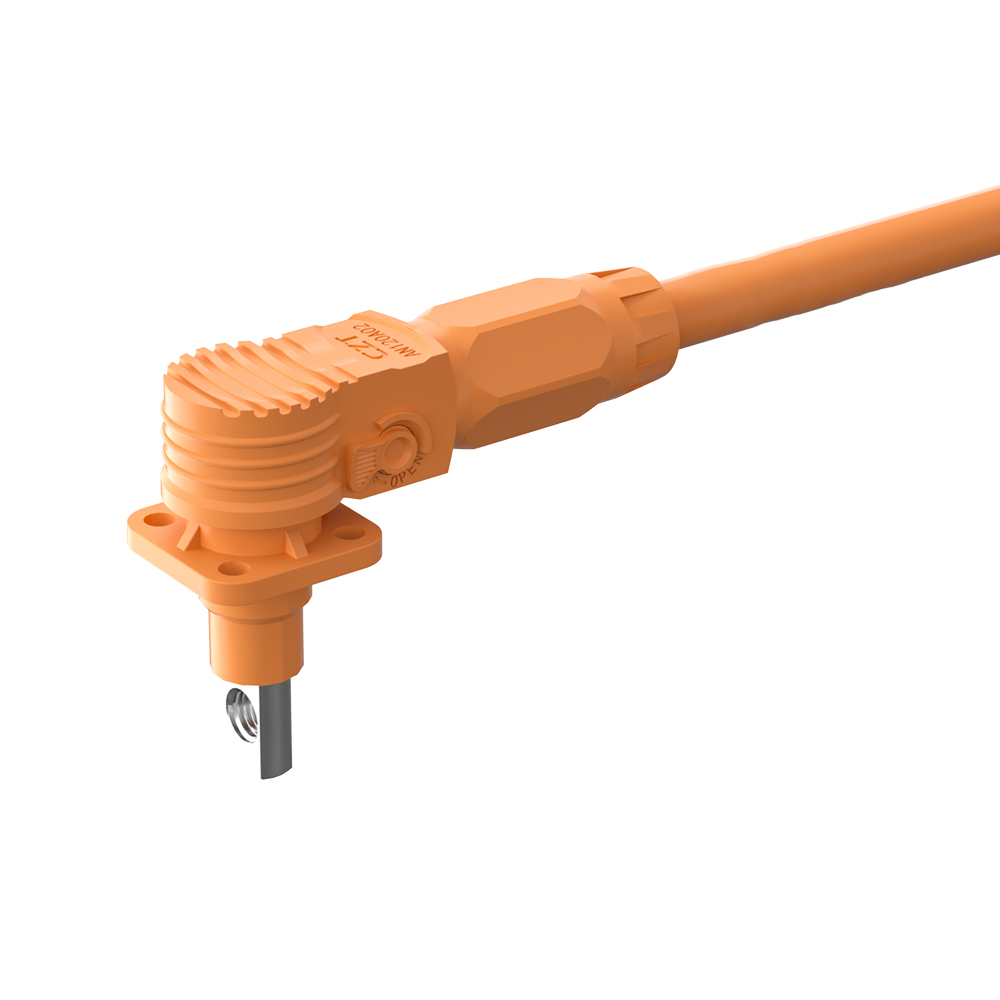

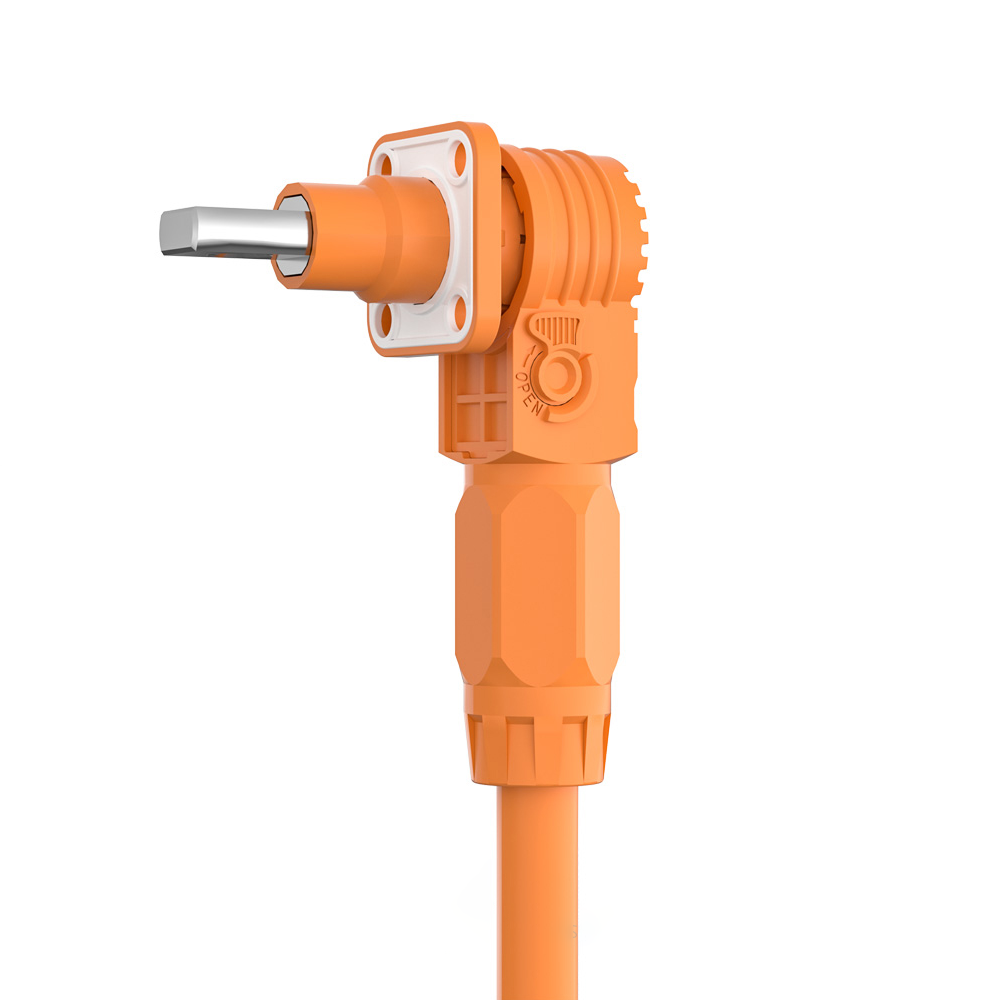

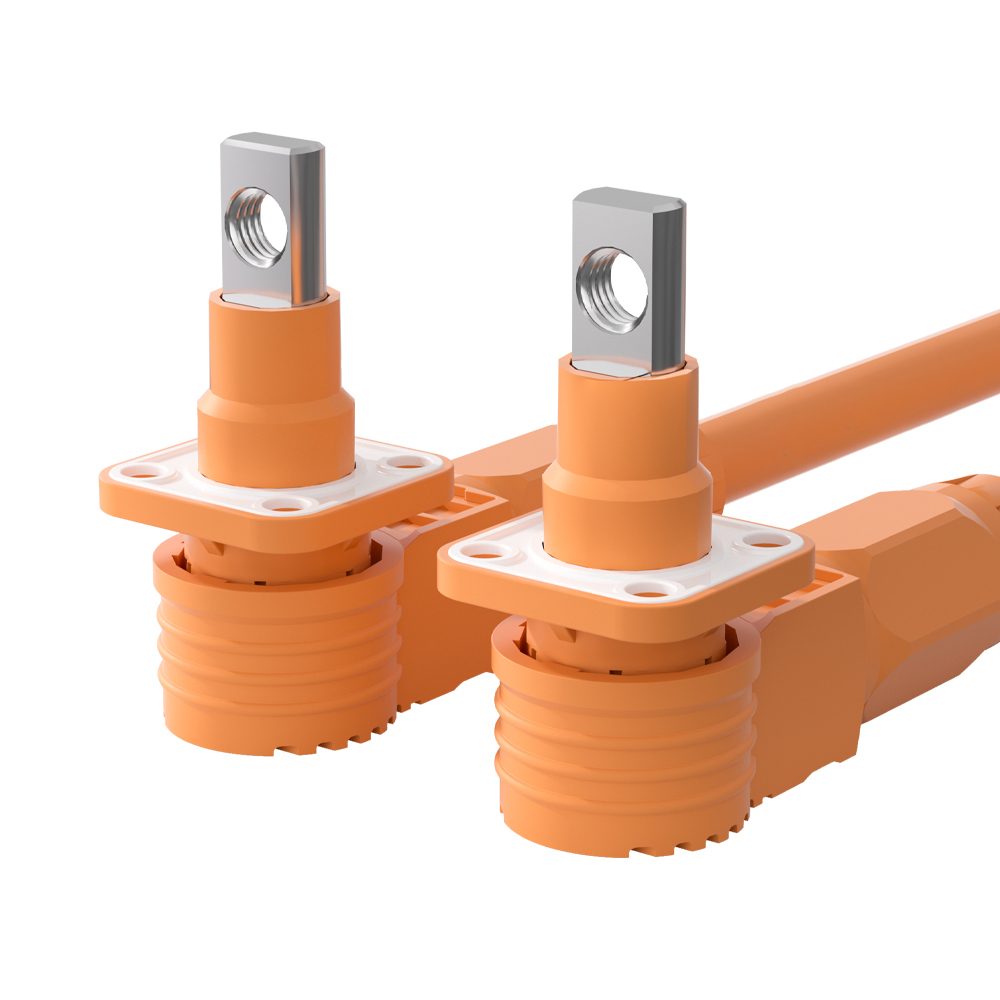

Type 2 Battery Energy Storage Connector
A robust Type 2 connector for battery energy storage, providing safe, stable, and efficient high-voltage connections in ESS, EV, and industrial applications.
-
Designed for Type 2 battery energy storage systems
-
CAE-optimized for electrical and thermal reliability
-
High-conductivity copper terminals
-
Mechanical keying prevents incorrect mating
-
Stable operation under continuous high load
CONTACT US
- Product Details
- Application
- Features
- Parameter
- Message
CONTACT US
Connector Introduction
The Type 2 Battery Energy Storage Connector is designed for safe, reliable, and efficient electrical connections in advanced battery energy storage systems. Engineered using professional CAE simulation, it meets strict standards for insertion force, insulation resistance, dielectric strength, and temperature rise. Ideal for series connection of battery modules, it enhances safety and simplifies installation in ESS applications. Featuring a robust insulated housing, high-conductivity copper terminals, and precise mechanical keying to prevent incorrect mating, this connector ensures stable performance under continuous high-load conditions in new energy, electric vehicle, and industrial storage systems.
Product Applications
Widely used in: new energy vehicle motors, electronic controls, battery PAKs, high-voltage distribution boxes, etc.
Features of Energy Storage Connector
IPX67 professional-grade waterproof. 360-degree rotation: easy wiring, various adjustable angles. Connector insulation uses PA66: high strength, high and low temperature resistant, flame retardant UL94/V0 rating, passed 1000 hours of high and low temperature impact testing. Oxygen-free copper wire conductor uses high-quality oxygen-free copper, good conductivity, low heat generation, suitable for long-term load use. Tight and reliable fit, terminal connection uses: T2 pure copper. Injection molding process, integrated professional mold.
Product Parameter Table
| Terminal | 6mm | Connector Type | Plug |
| Direction | Right Angle | Color | Orange |
| Wire Gauge | 16mm2 | Mounting Type | Cable Mount Receptacle |
| Housing Material | Nylon | Rated Voltage | 1000V |
| Rated Current | 100A | Contact Connection | Silver Plated |
| Insulation Resistance | ≥ 1000MΩ | Flammability Rating | UL94 V-0 |
| Contact Termination | Crimp | Ingress Protection | IP67 |
| Operating Temperature | -40℃~125℃ | Brand | Flash Speed |
