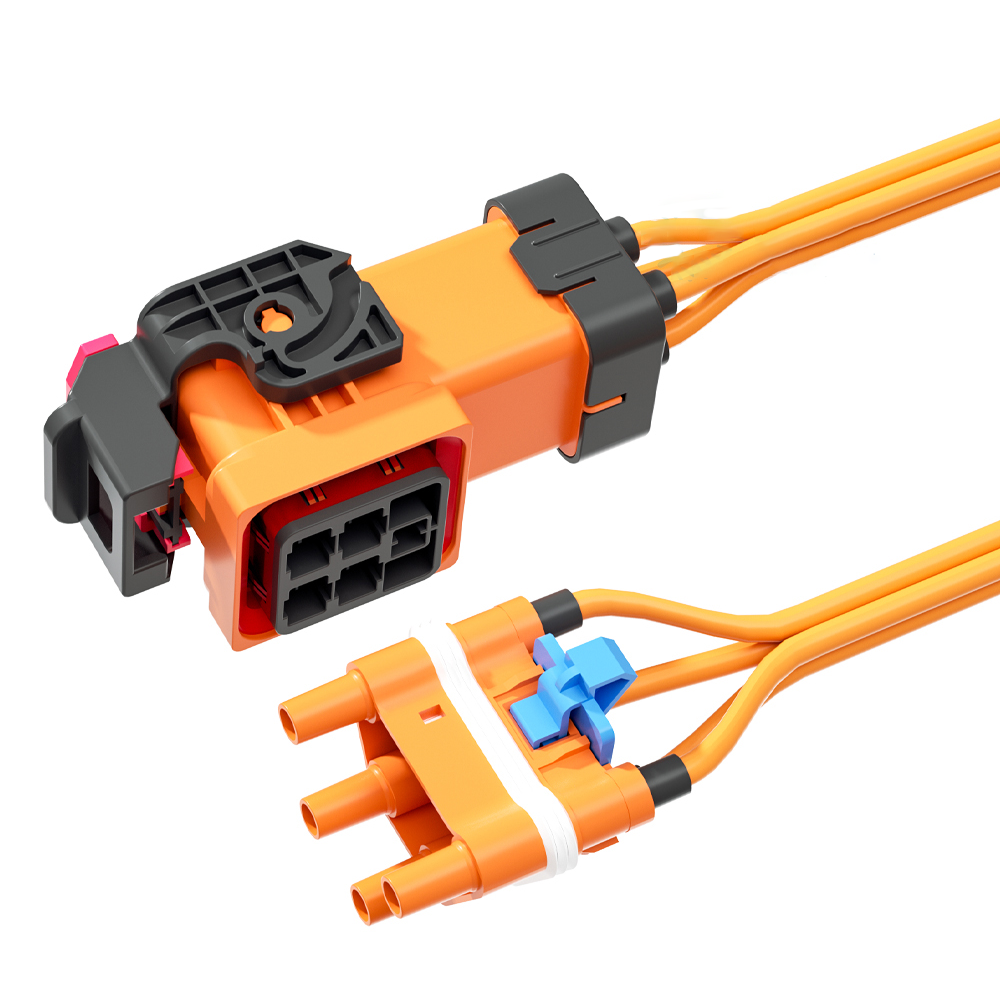

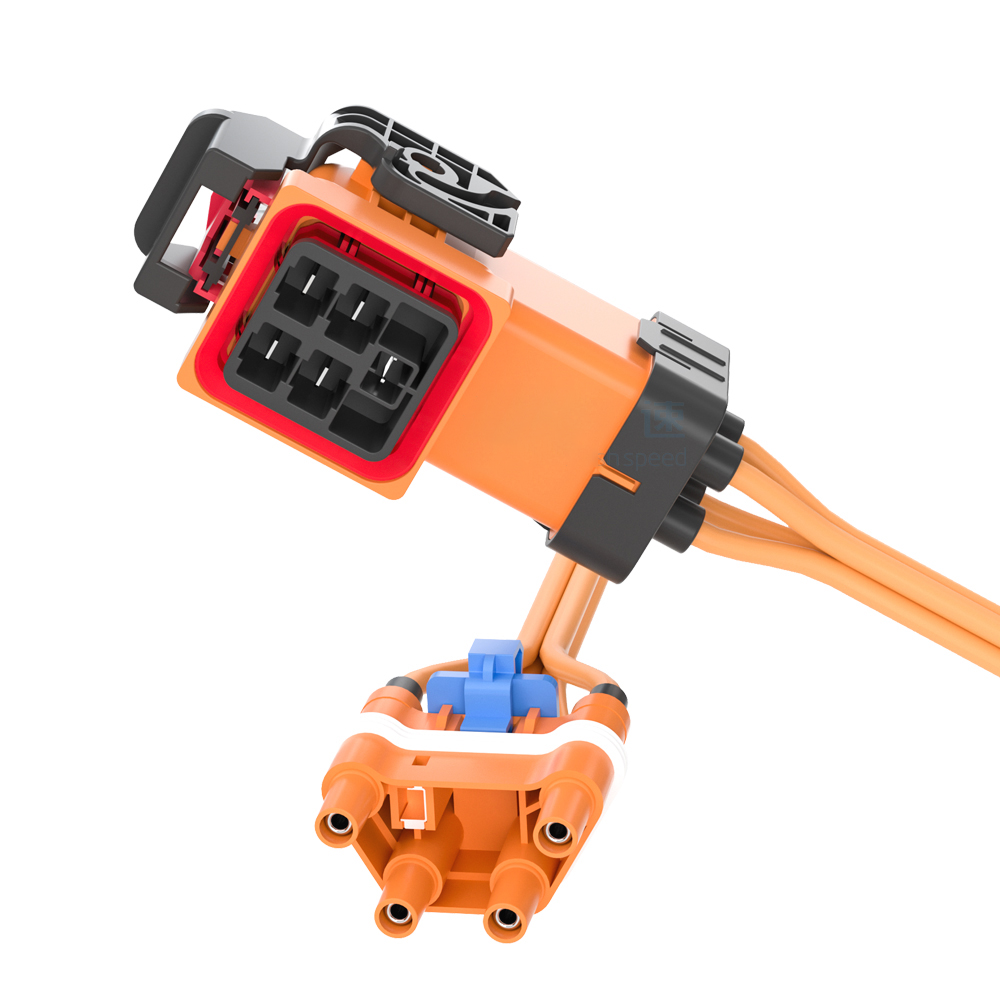

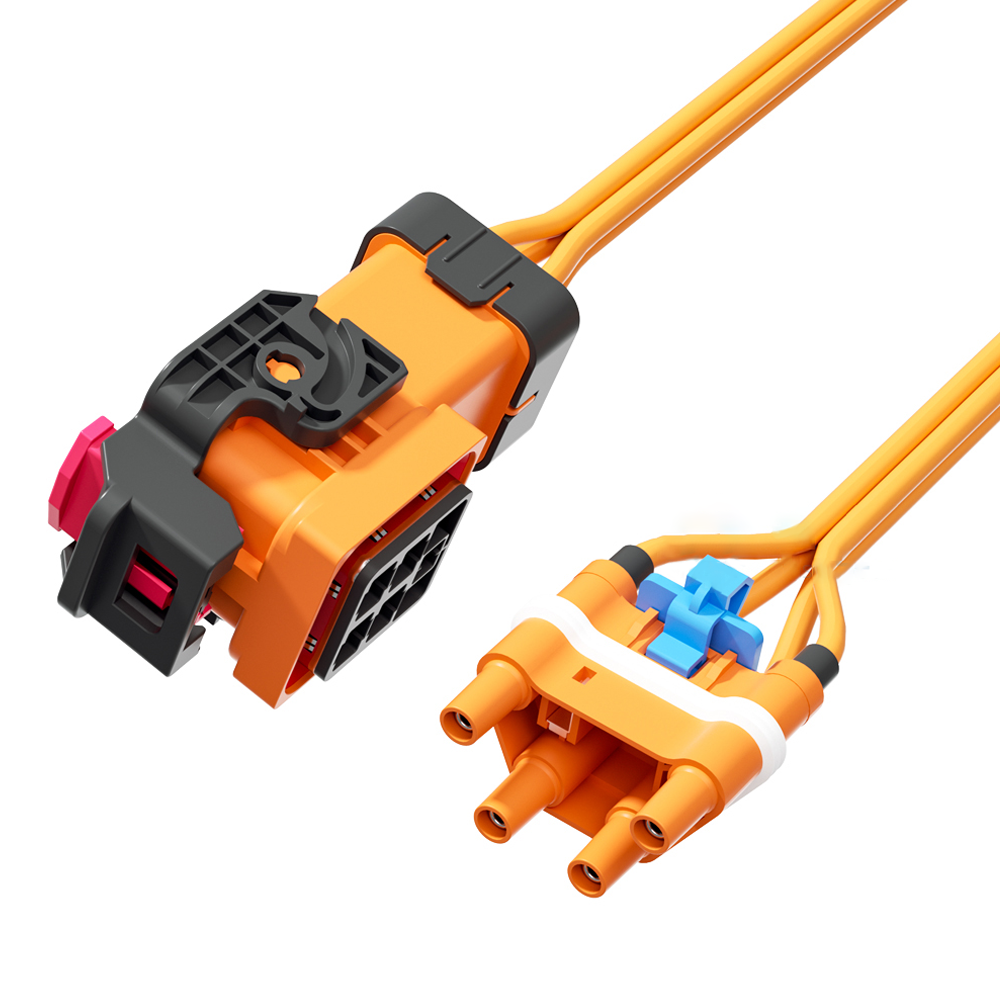

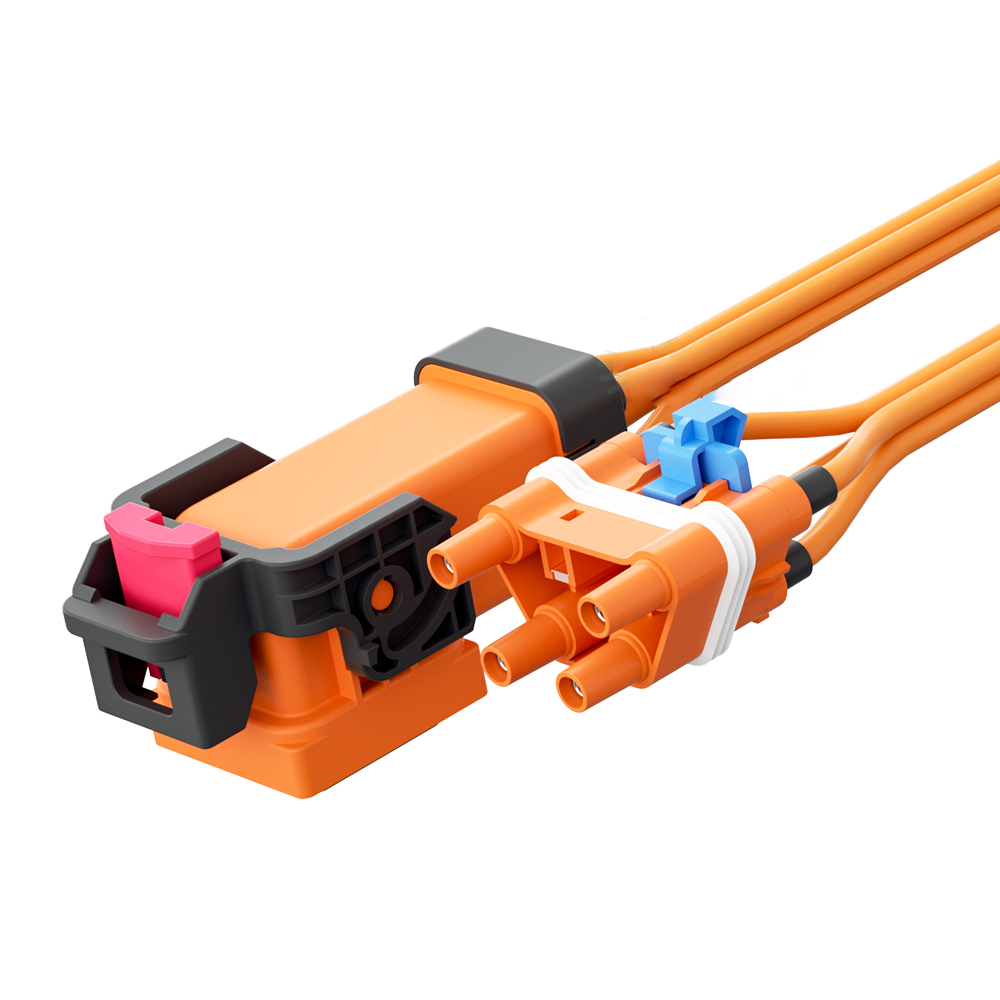

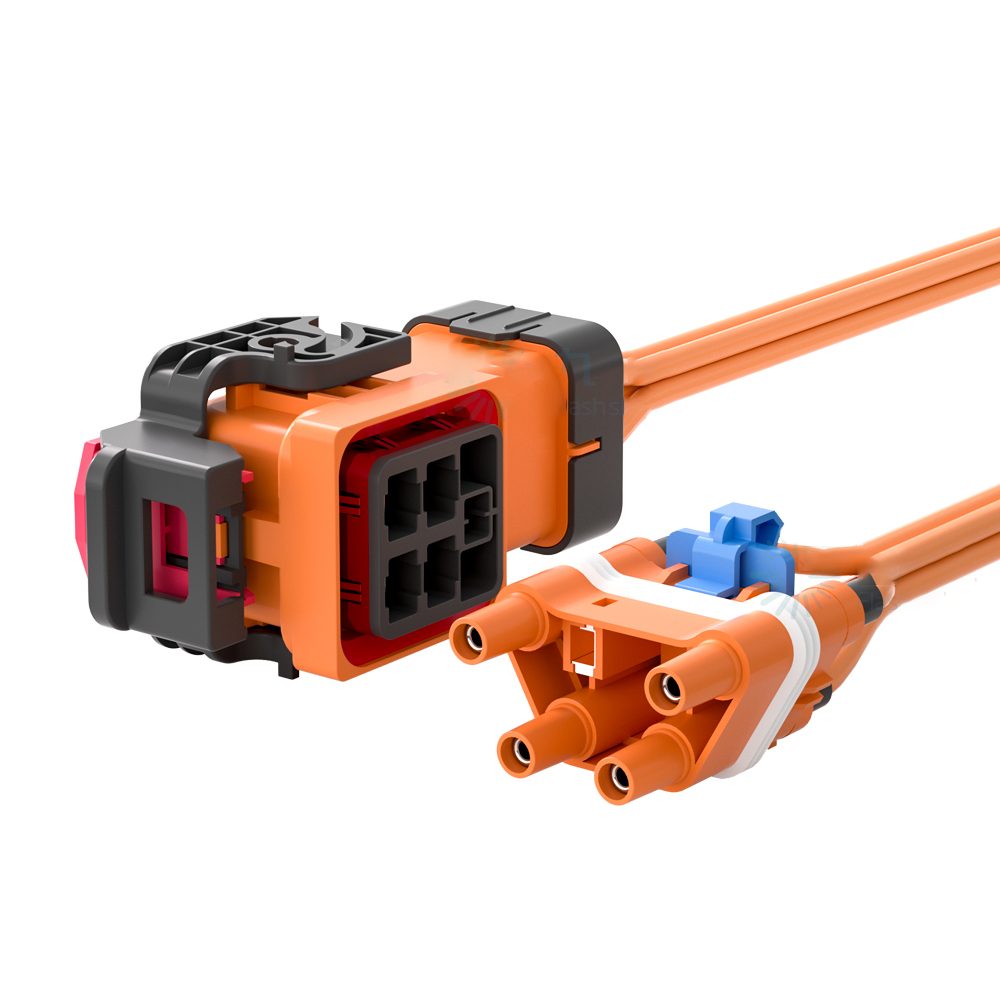

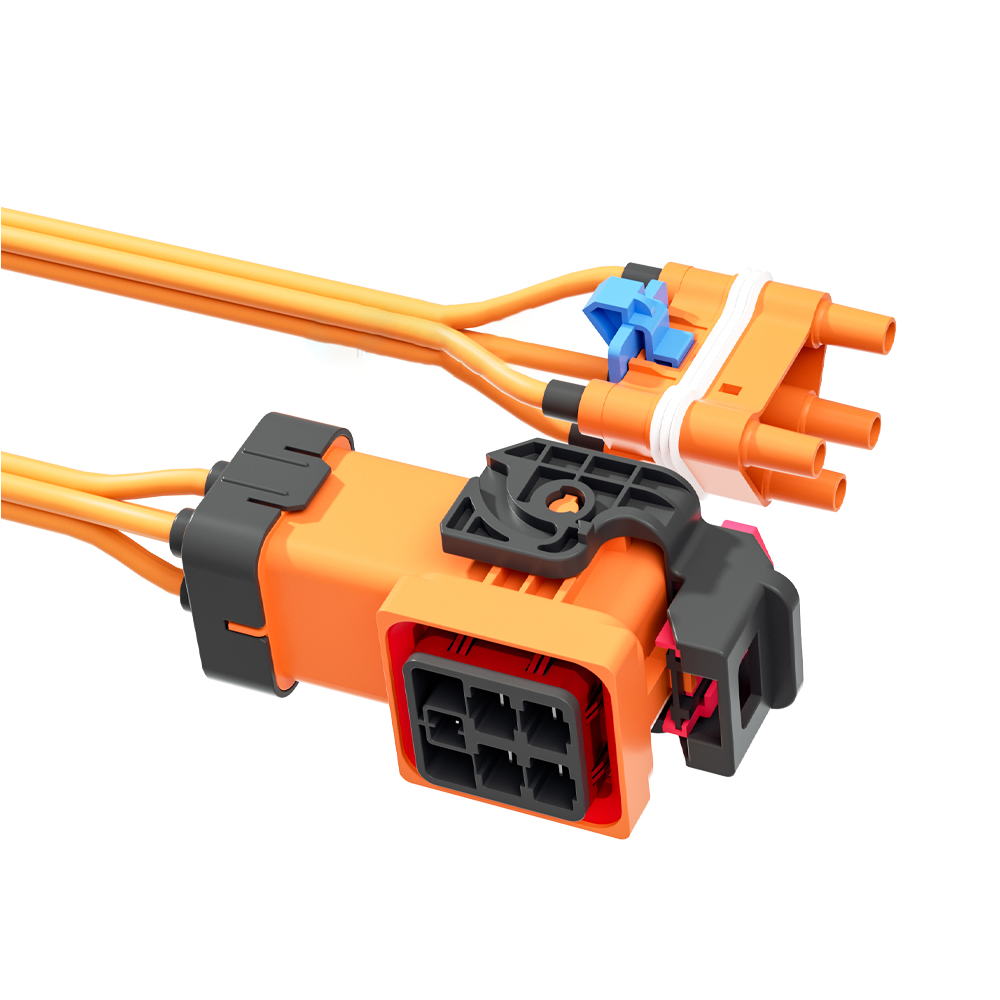

Tesla New Energy KET2PBT-GF25 Air Conditioner Panel High Voltage Wiring Harness Connector Plug
A high-reliability high-voltage connector for Tesla new energy systems, delivering safe power transmission with IPX67 protection and durable PBT-GF25 insulation.
-
Designed for Tesla new energy high-voltage systems
-
IPX67 waterproof for harsh environments
-
PBT-GF25 insulation with high mechanical strength
-
Low temperature rise under continuous load
-
Mechanical keying prevents polarity errors
CONTACT US
- Product Details
- Application
- Features
- Parameter
- Message
CONTACT US
Connector Introduction
The Tesla New Energy KET2PBT-GF25 high voltage wiring harness connector is designed using professional CAE simulation to meet critical performance requirements, including insertion force, insulation resistance, dielectric strength, and temperature rise. It is widely used in air conditioner panels and high-voltage systems for new energy vehicles and energy storage applications. Featuring a robust IPX67 waterproof structure, high-strength PBT-GF25 insulation, and mechanical keying to prevent incorrect mating, this connector ensures safe, stable, and efficient power transmission in demanding automotive and ESS environments.
Product Applications
Widely used in: new energy vehicle motors, electronic controls, battery PAKs, high-voltage distribution boxes, etc.
Features of Energy Storage Connector
IPX67 professional-grade waterproof; the connector insulation is made of PA66: high strength, high and low temperature resistance UL94/V0 flame retardant; through 1000 hours of high and low temperature impact testing, the connector fastens tightly, safely and reliably; the terminal connection is made of: copper T2, injection molding process, integrated professional mold.
Product Parameter Table
| Connector Type | Plug | Direction | Right Angle |
| Number of Pins | 2 Pin | Terminal | 8mm |
| Wire Gauge | 50mm2 | Key | A |
| Mounting Type | Cable Mount Receptacle | Housing Material | PA66 + GF |
| Feature | Waterproof | Contact Material | Brass Alloy |
| Contact Termination | Crimp | Rated Voltage | 1500V |
| Contact Finish | Silver Plated | Flammability | UL94 V-0 |
| Rated Current | 250A | Ingress Protection | IP67 |
| Insulation Resistance | ≥ 500MΩ | Operating Temperature | -40℃~125℃ |
