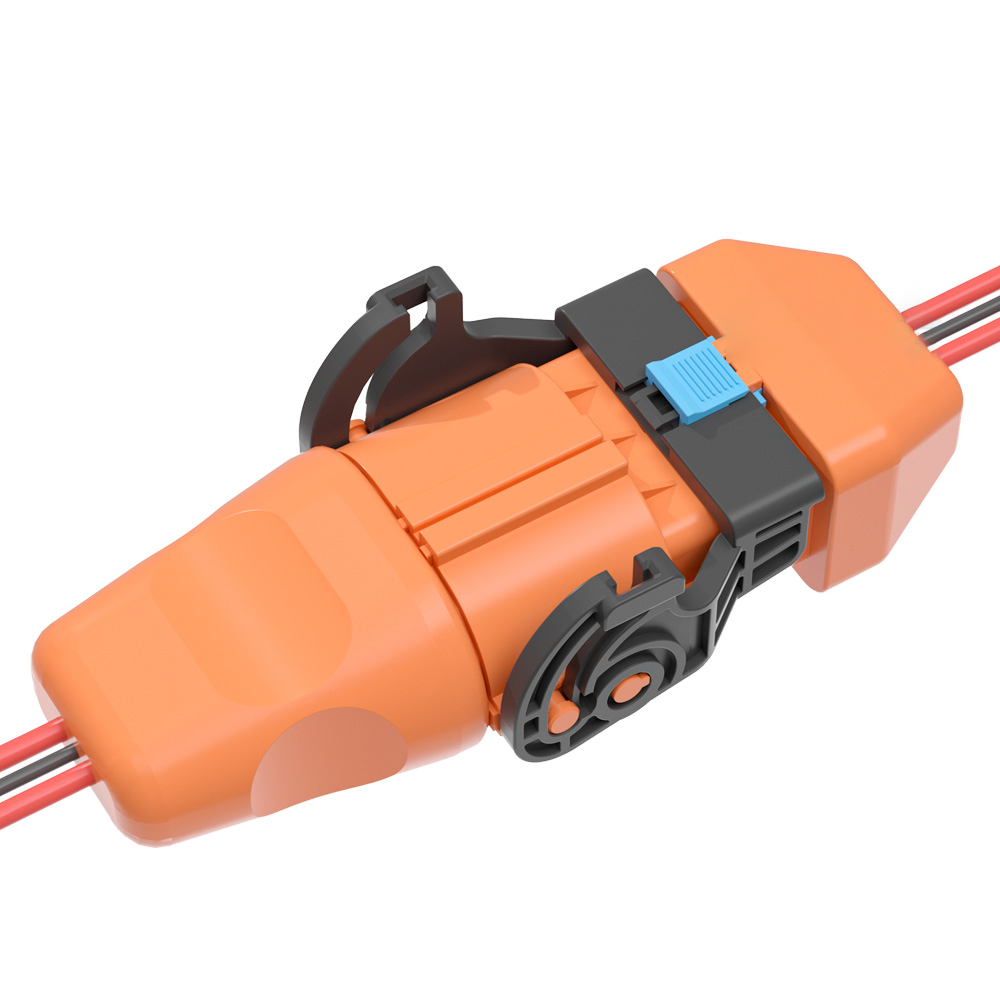

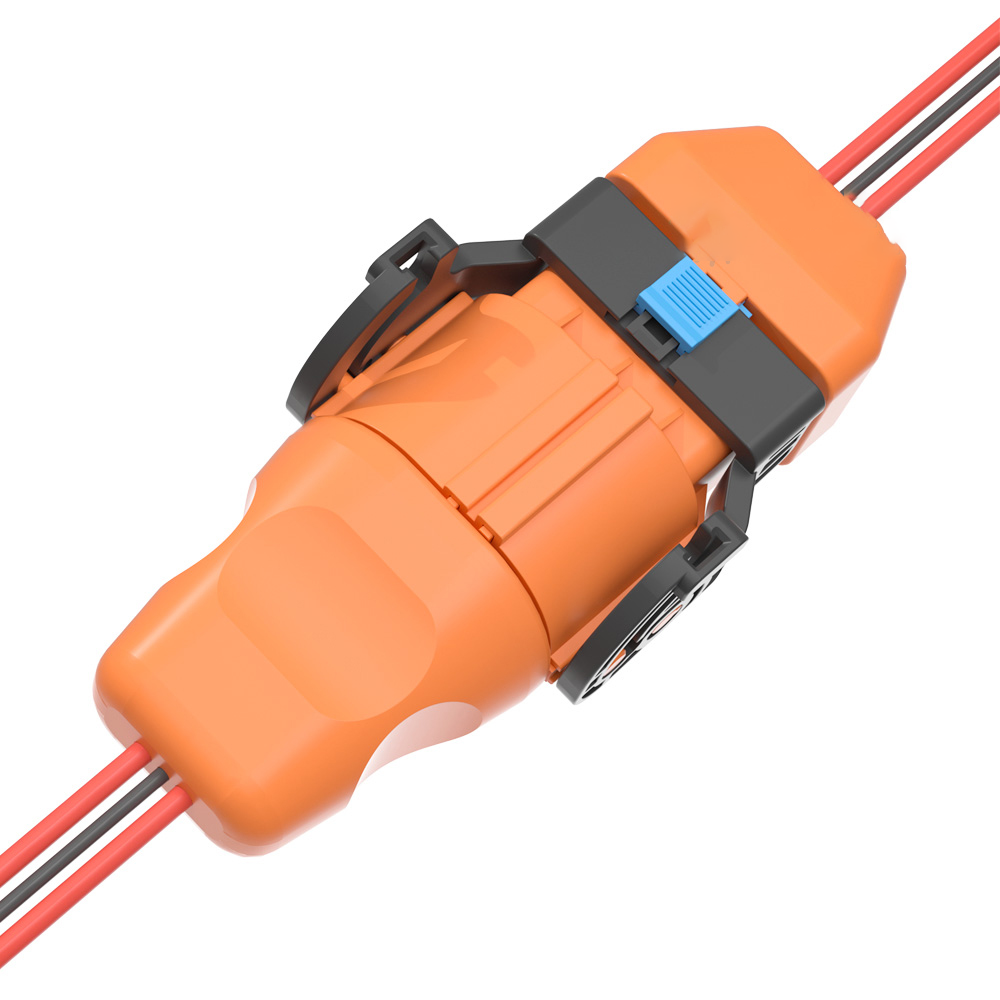

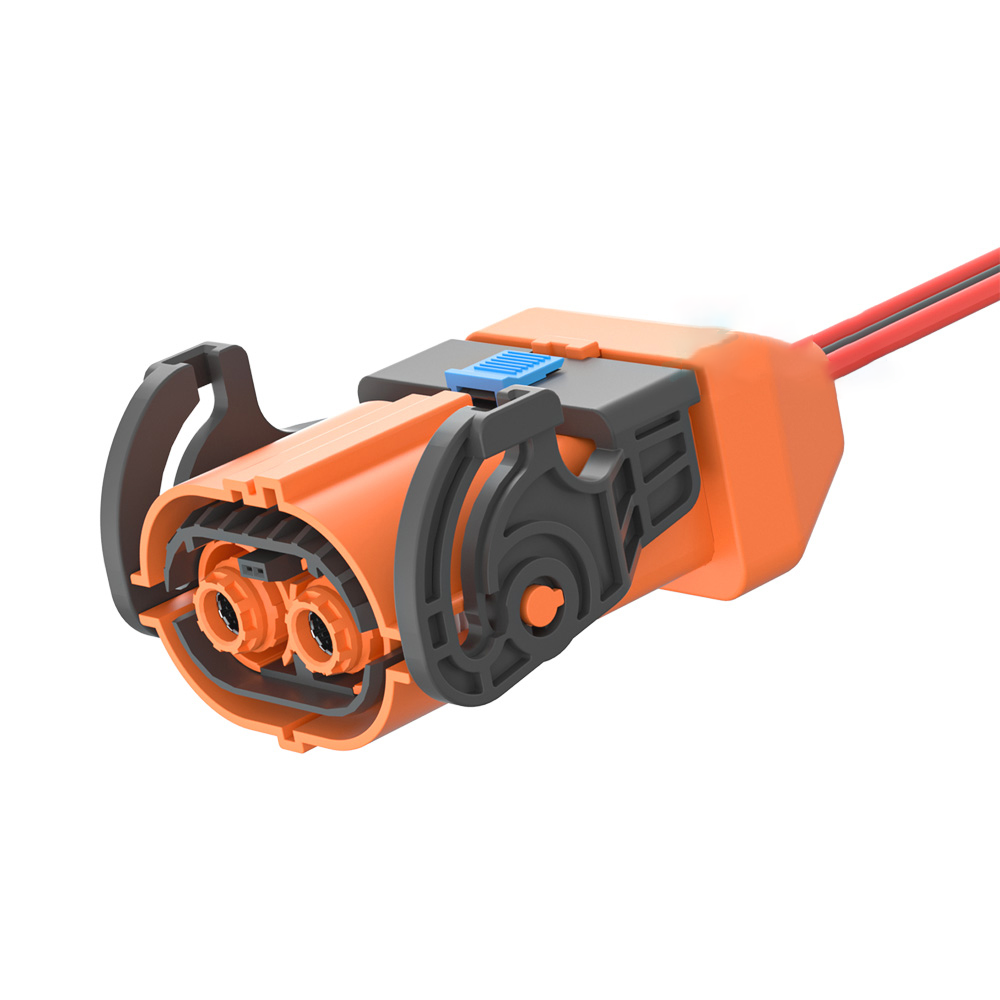

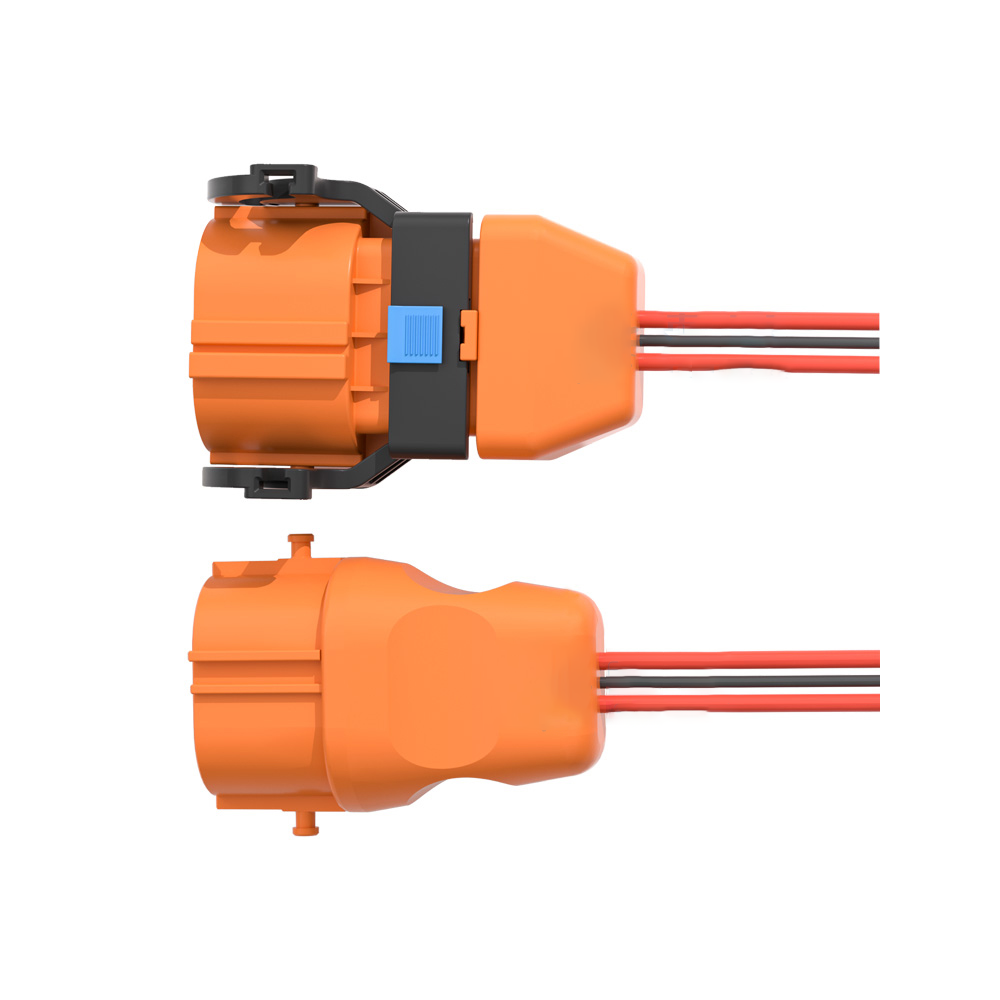

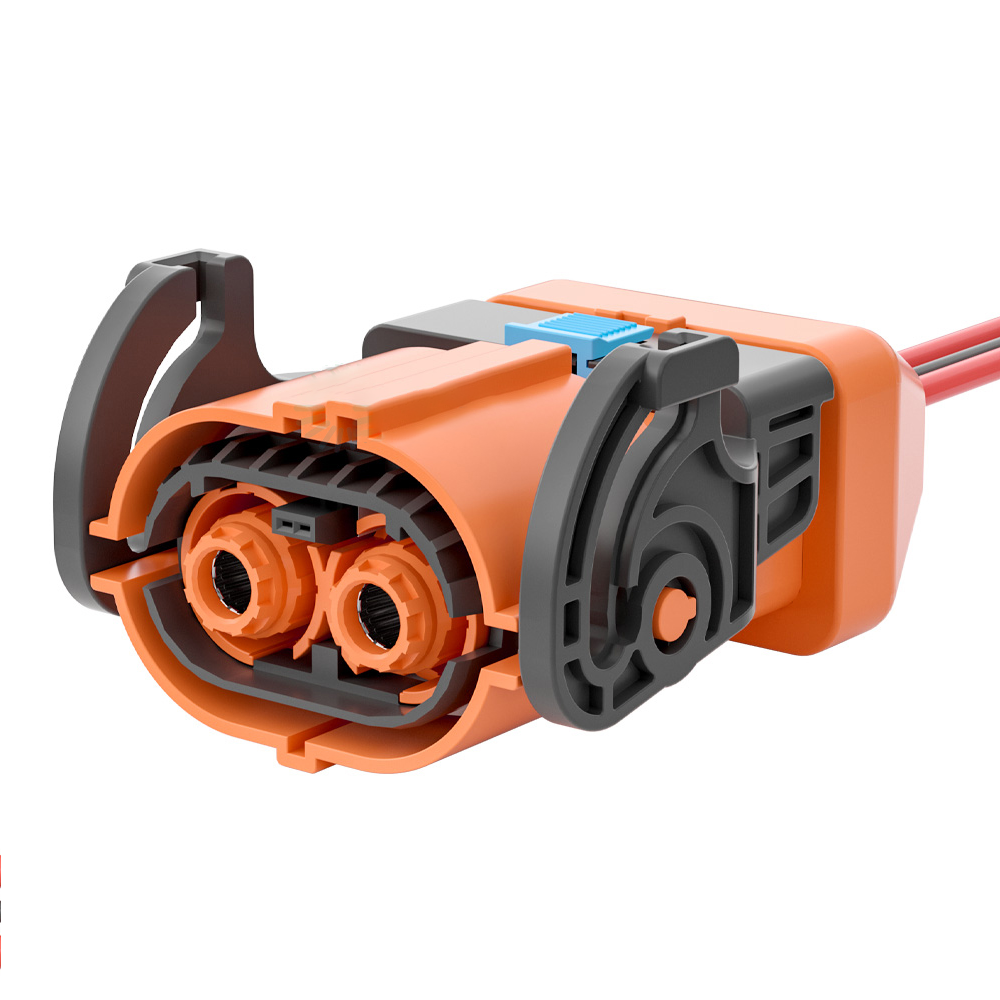

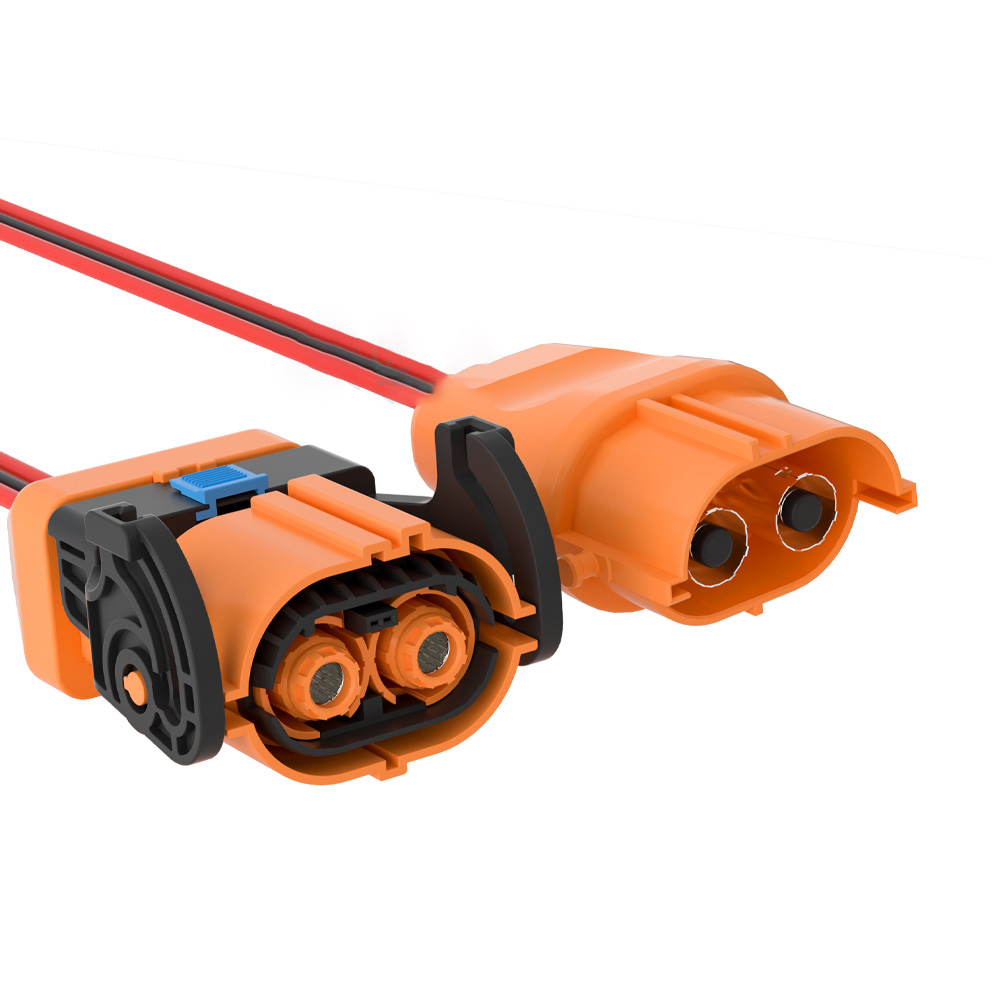

New Energy High Voltage Connector 8mm High Current Two-Core Male and Female Plug and Socket
An 8 mm high-current two-core high-voltage connector with male and female plug design, delivering safe, stable, and efficient power transmission for new energy systems.
-
8 mm high-current two-core configuration
-
Designed for high-voltage new energy systems
-
CAE-optimized electrical and thermal performance
-
High-conductivity copper contacts
-
Secure male and female plug-socket structure
CONTACT US
- Product Details
- Application
- Features
- Parameter

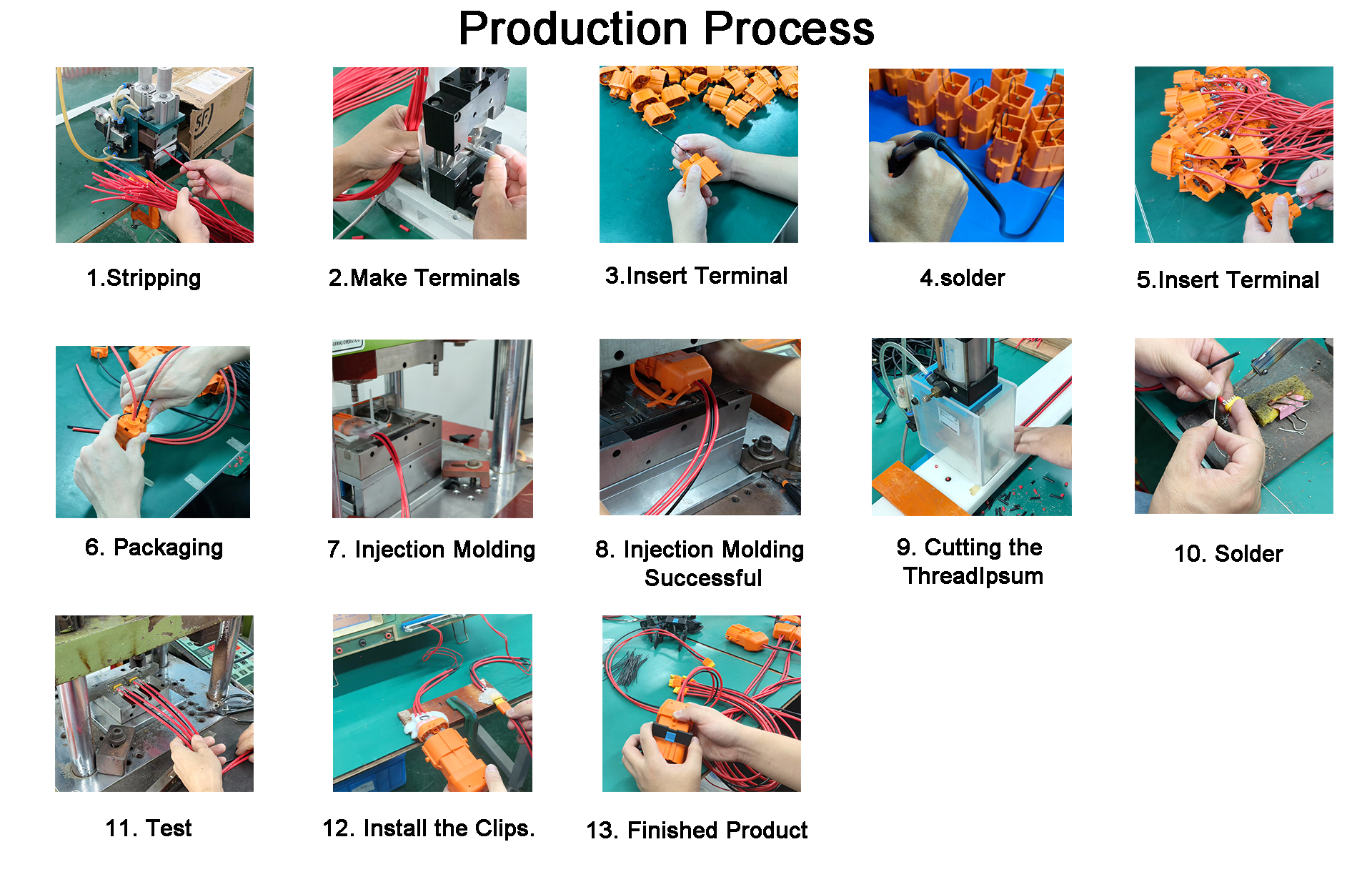

- Part of the Production Process
- Message
CONTACT US
Connector Introduction
The New Energy High Voltage Connector features an 8 mm high-current two-core design, engineered for safe and reliable power transmission in new energy applications such as energy storage systems, electric vehicles, and industrial power equipment. Developed using advanced CAE simulation, it meets stringent requirements for insulation resistance, dielectric strength, insertion force, and temperature rise. With high-conductivity copper contacts, a durable insulated housing, and precise male-female mating, this connector ensures stable performance under continuous high-load conditions while enhancing operational safety and installation reliability.
Product Applications
Widely used in: new energy vehicle motors, electronic controls, battery PAKs, high-voltage distribution boxes, etc.
Features of Energy Storage Connector
IPX67 professional-grade waterproof; the connector insulation is made of PA66: high strength, high and low temperature resistance UL94/V0 flame retardant; through 1000 hours of high and low temperature impact testing, the connector fastens tightly, safely and reliably; the terminal connection is made of: copper T2, injection molding process, integrated professional mold.
Product Parameter Table
| Connector Type | Plug | Direction | Right Angle |
| Number of Pins | 2 Pin | Terminal | 8mm |
| Wire Gauge | 50mm2 | Key | A |
| Mounting Type | Cable Mount Receptacle | Housing Material | PA66 + GF |
| Feature | Waterproof | Contact Material | Brass Alloy |
| Contact Termination | Crimp | Rated Voltage | 1500V |
| Contact Finish | Silver Plated | Flammability | UL94 V-0 |
| Rated Current | 250A | Ingress Protection | IP67 |
| Insulation Resistance | ≥ 500MΩ | Operating Temperature | -40℃~125℃ |
