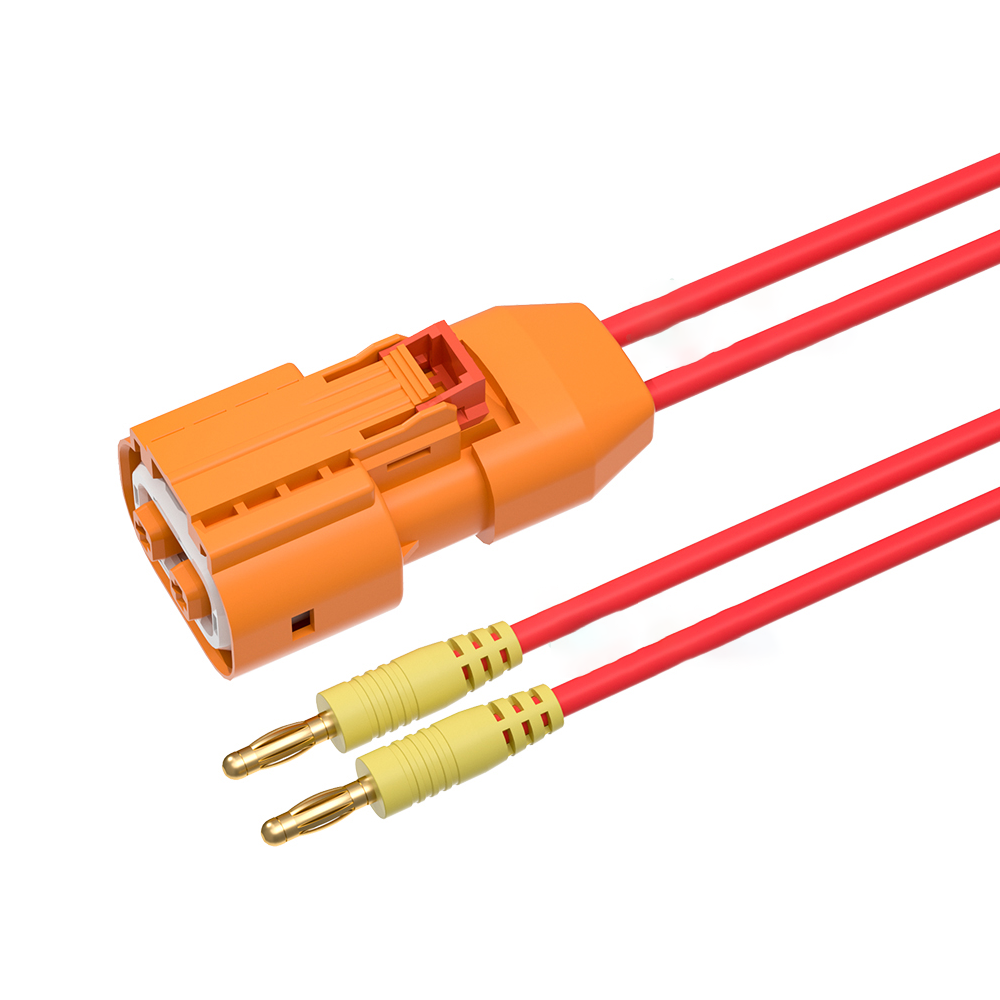

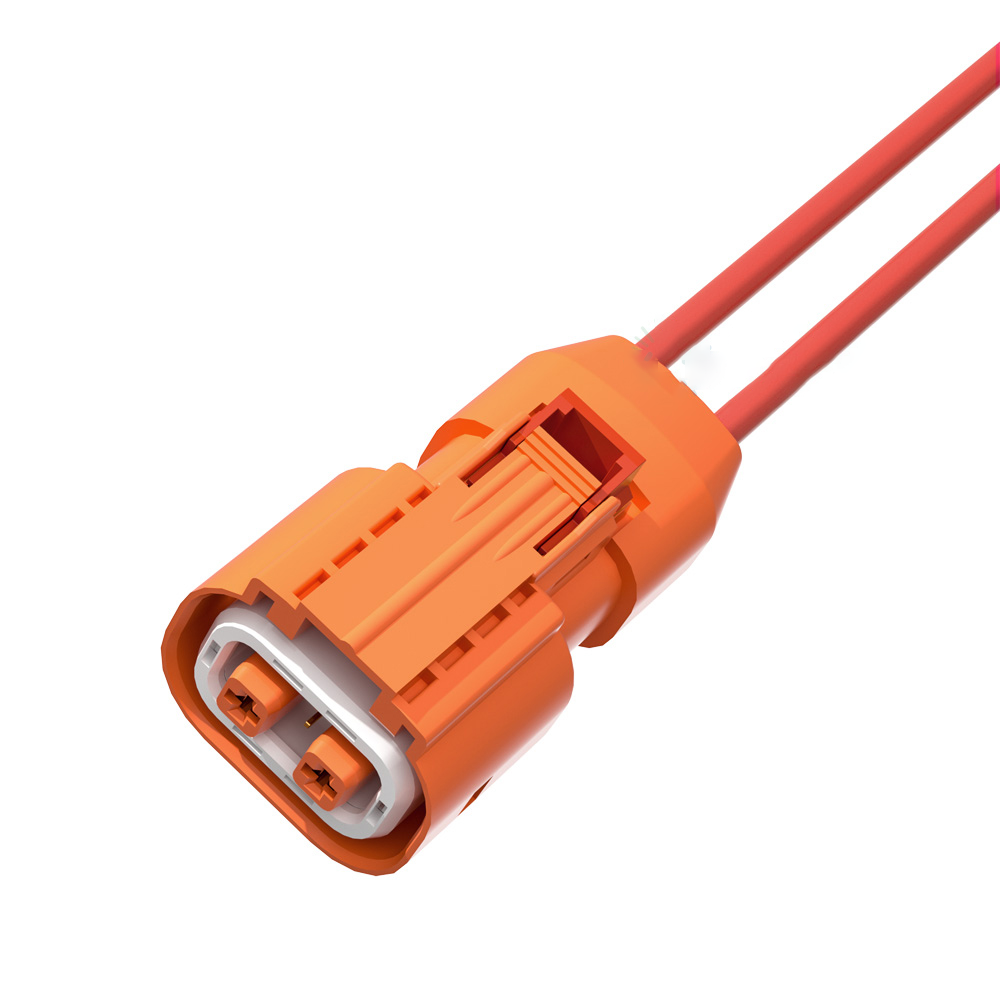

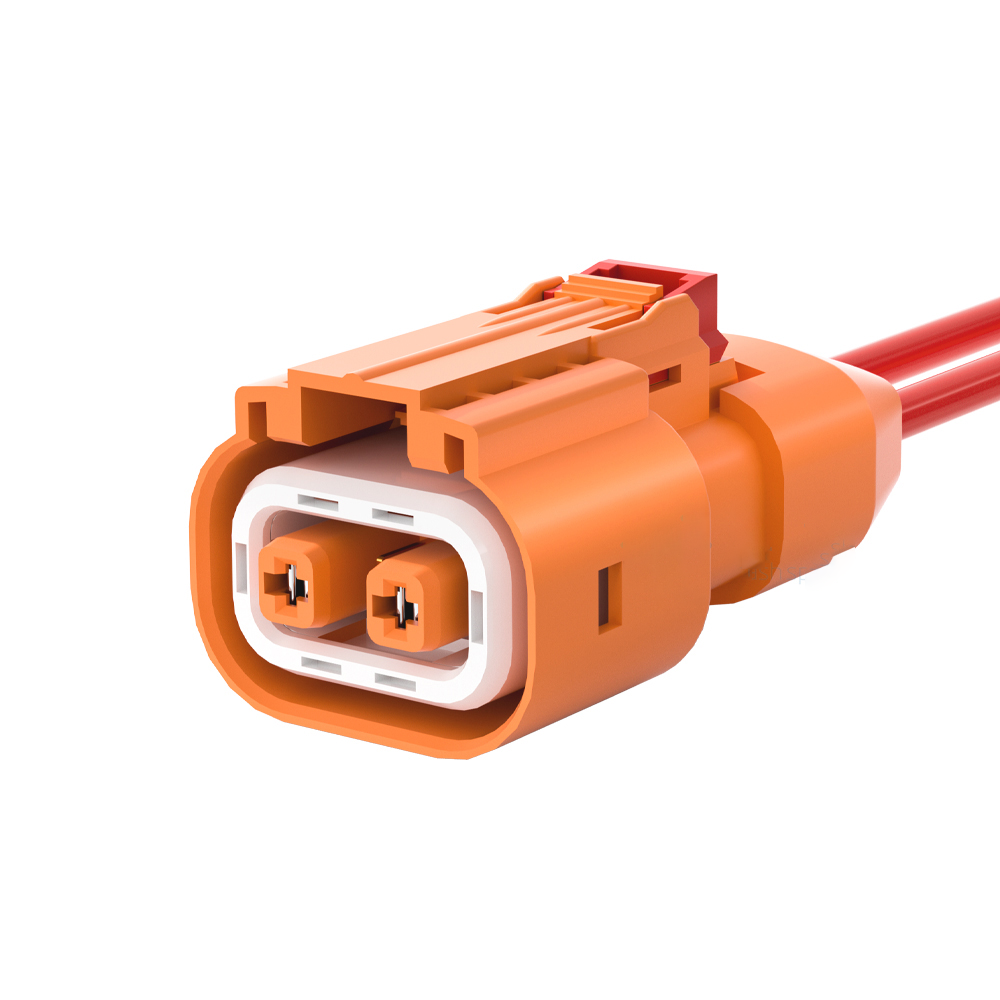

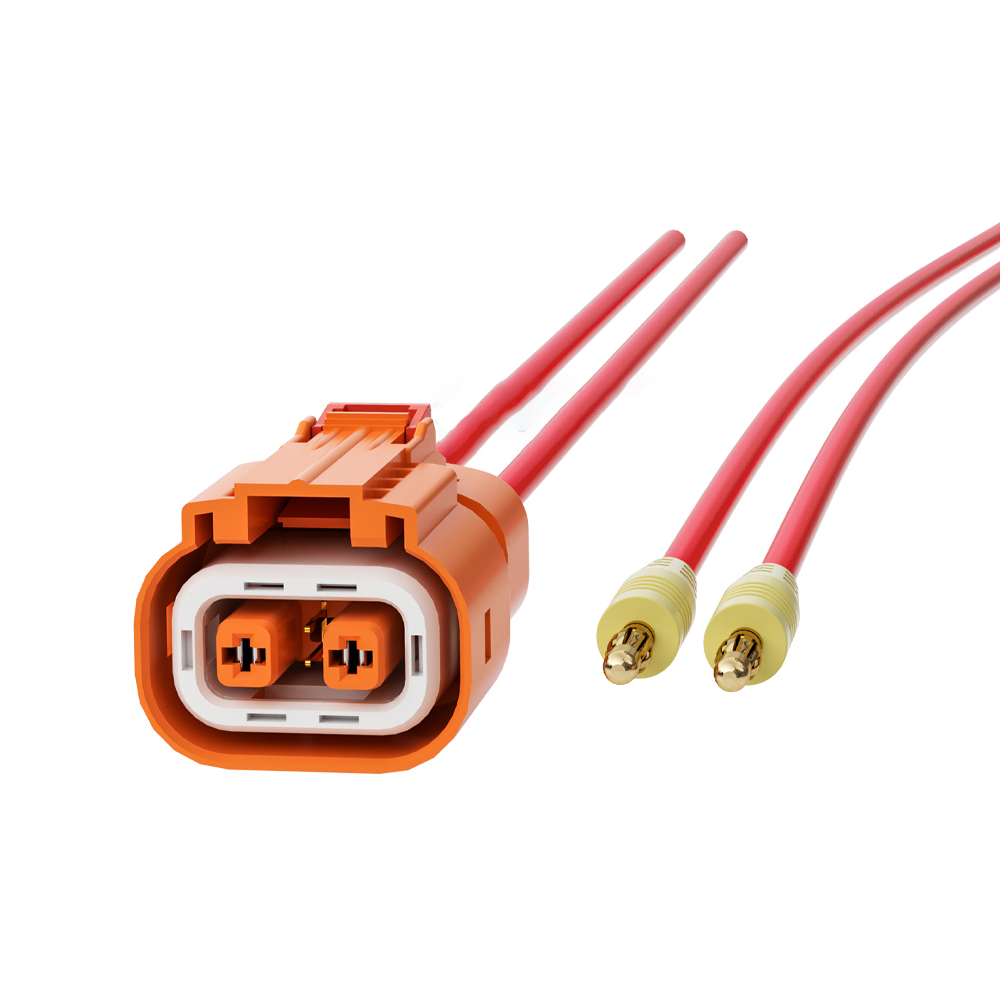

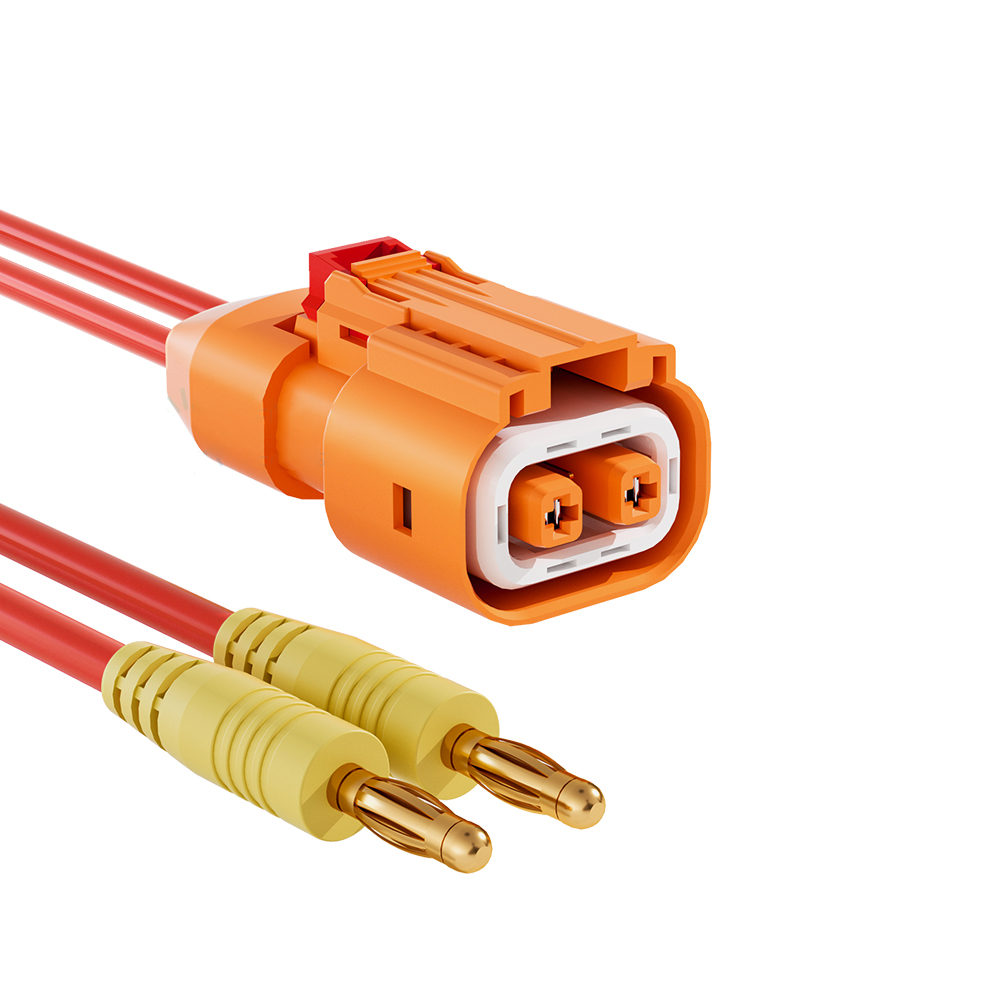

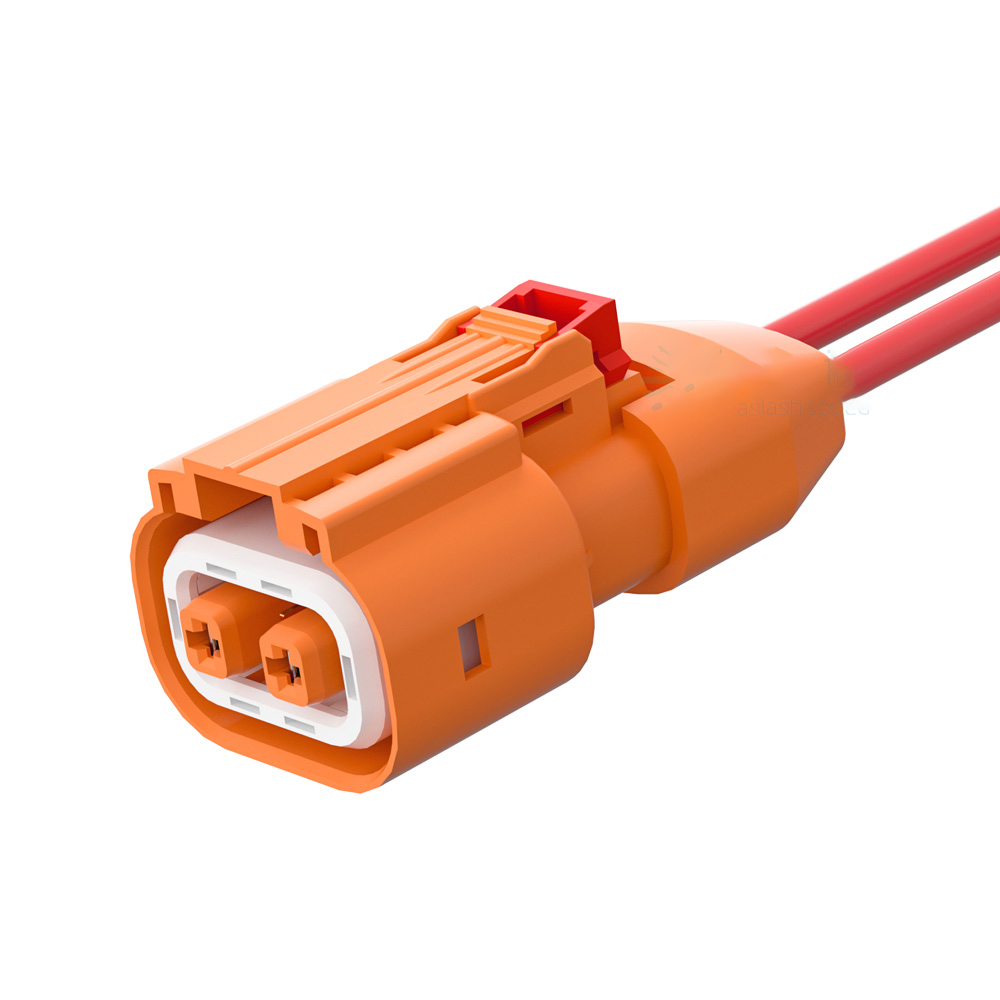

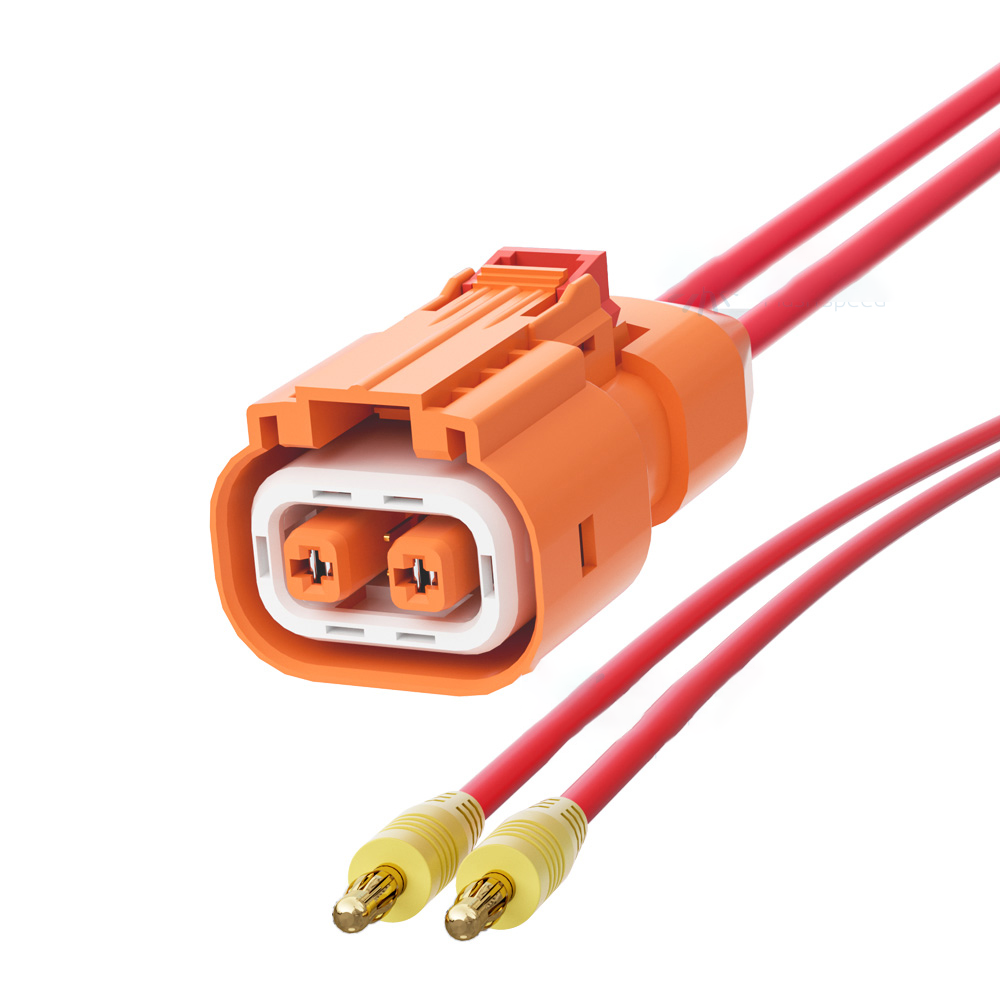

2-Pin Straight Hvil Plug 16a 2.5mm2 a Key Shielded
A robust HVIL energy storage connector with IPX67 protection, 360° rotation, and modular design, ensuring safe, efficient, and flexible power connections in ESS and EV systems.
-
IPX67 professional waterproof rating
-
360° rotatable design for flexible wiring
-
PA66 insulation, UL94 V-0 flame retardant
-
Oxygen-free copper conductor, low heat rise
-
Mechanical keying prevents wrong mating
-
Drawer-style plug-in, no on-site wiring required
CONTACT US
- Product Details
- Application
- Features
- Parameter
- Message
CONTACT US
Connector Introduction
The 2-Pin Straight HVIL Plug is a professional energy storage connector engineered with advanced CAE simulation to meet stringent requirements for insertion force, insulation resistance, dielectric strength, and temperature rise. Designed for safe series connection of battery modules in ESS installations, it significantly improves worker safety during assembly and maintenance. Featuring IPX67 waterproof protection, 360° rotation for flexible cable routing, and mechanical keying to prevent polarity reversal, this connector supports modular, high-power distribution solutions widely used in energy storage systems, electric vehicles, and renewable energy applications.

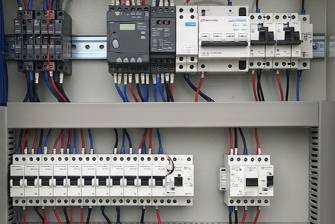

Product Applications

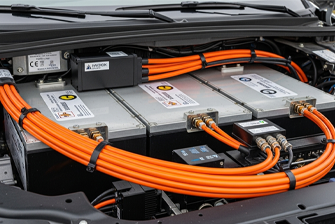

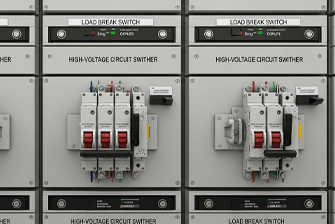

Widely used in: new energy vehicle motors, electronic controls, battery PAKs, high-voltage distribution boxes, etc.
Features of Energy Storage Connector
IPX67 professional-grade waterproof; the connector insulation is made of PA66: high strength, high and low temperature resistance UL94/V0 flame retardant; through 1000 hours of high and low temperature impact testing, the connector fastens tightly, safely and reliably; the terminal connection is made of: copper T2, injection molding process, integrated professional mold.
Product Parameter Table
| Connector Type | Plug | Direction | Right Angle |
| Number of Pins | 2 Pin | Wire Gauge | 50mm2 |
| Key | A | Mounting Type | Cable Mount Receptacle |
| Housing Material | PA66 + GF | Feature | Waterproof |
| Contact Termination | Crimp | Contact Material | Brass Alloy |
| Contact Finish | Silver Plated | Rated Voltage | 800V |
| Rated Current | 16A | Flammability | UL94 V-0 |
| Ingress Protection | IP67 | Operating Temperature | -40℃~125℃ |
