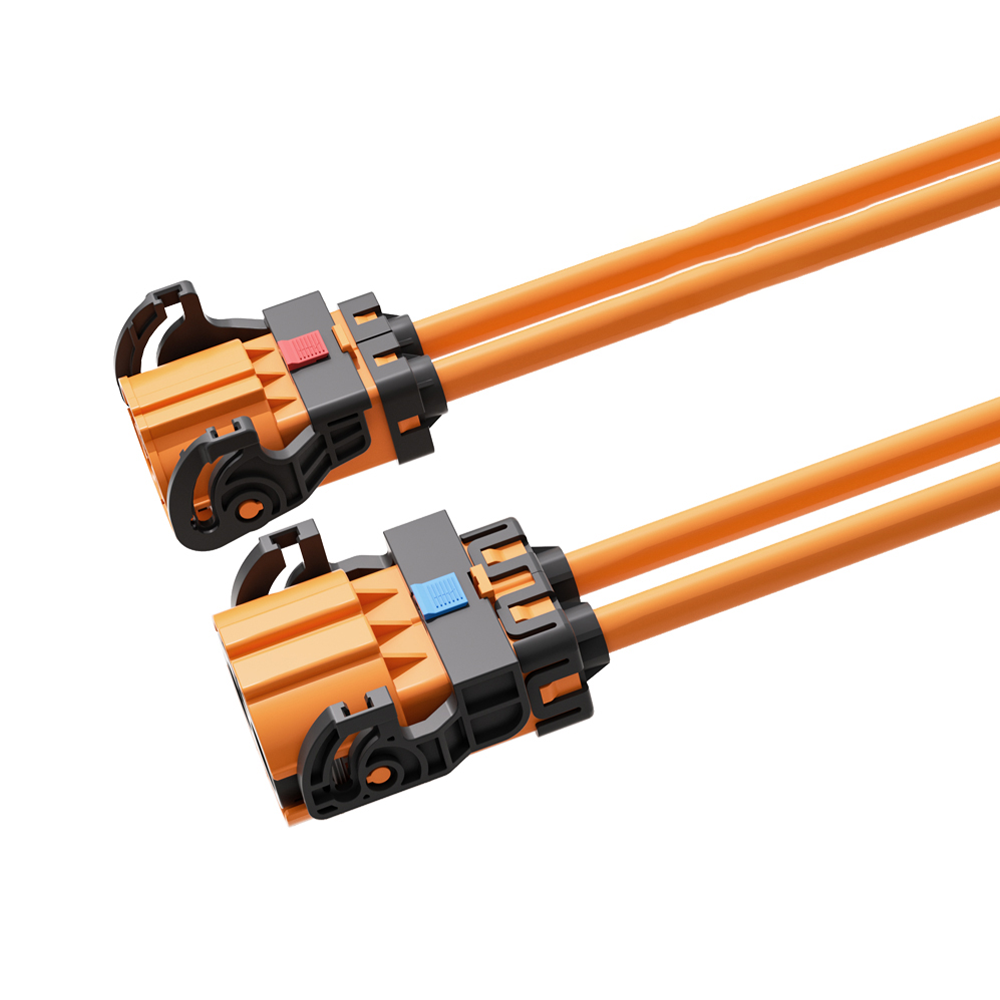

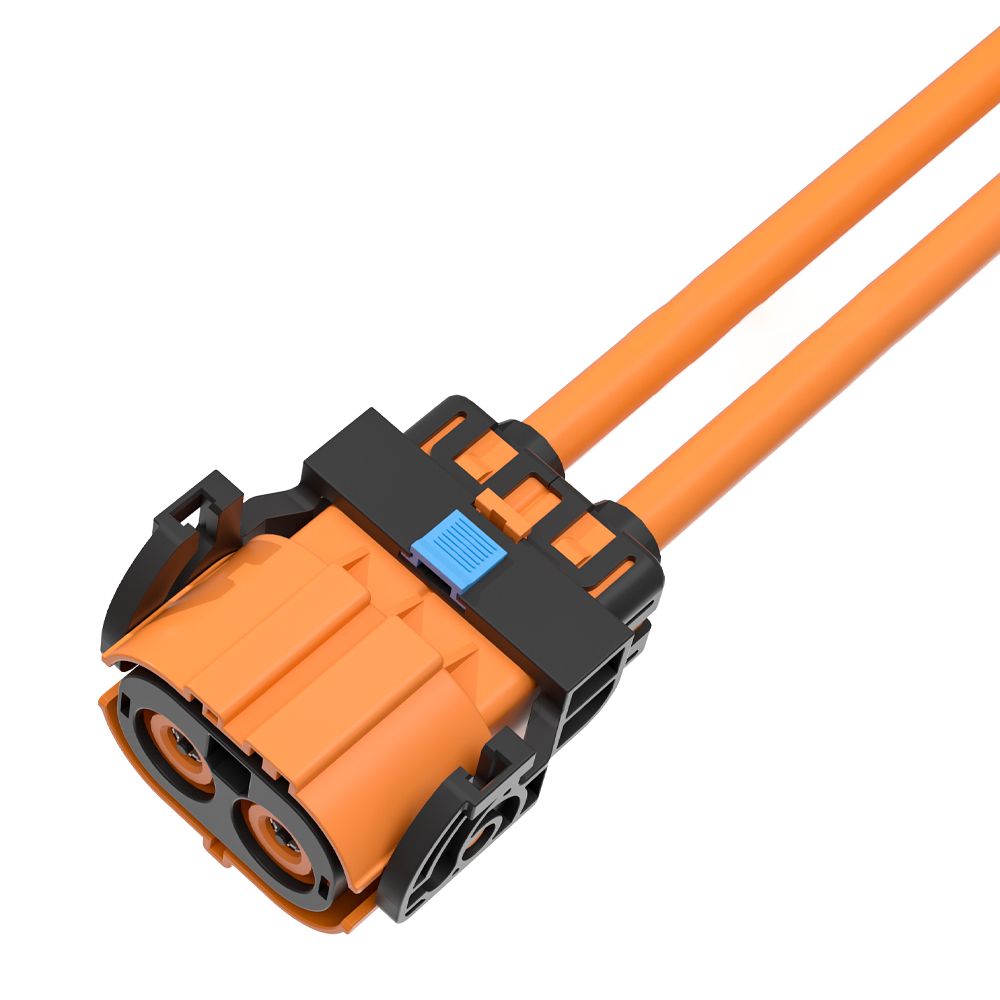

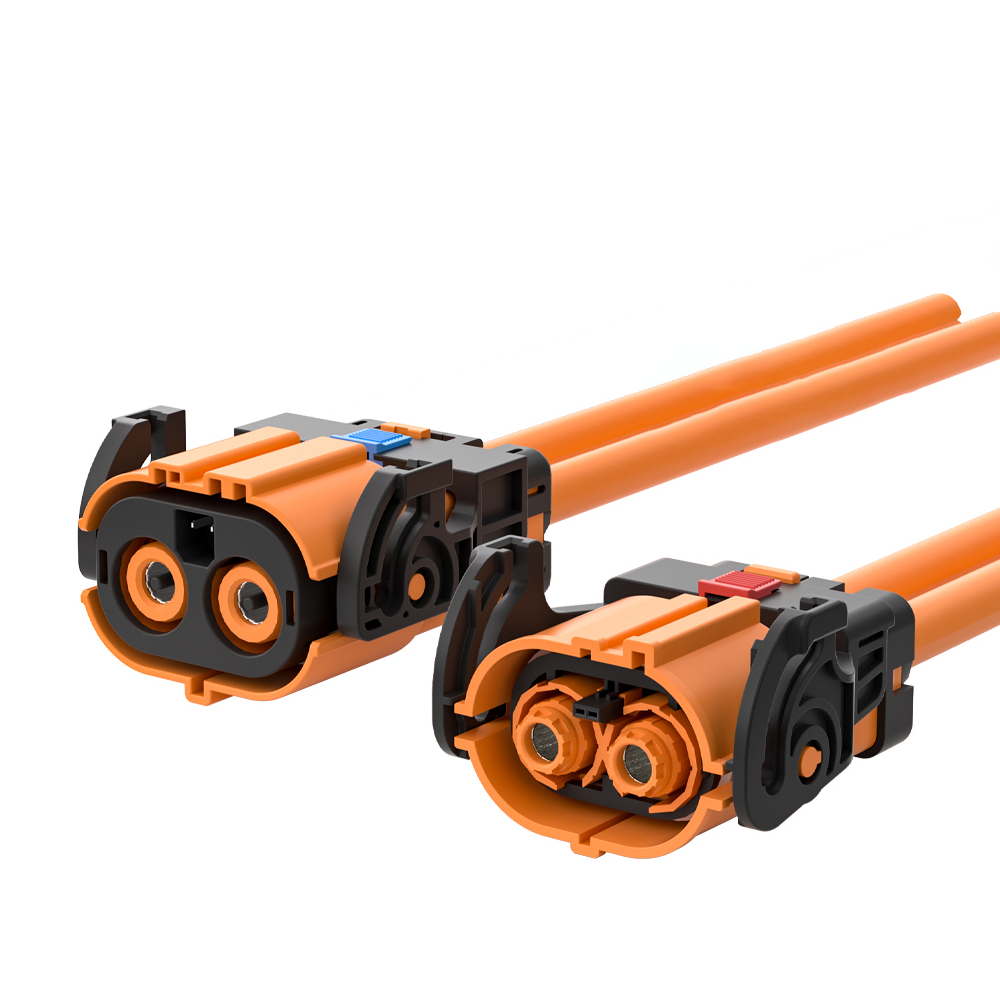

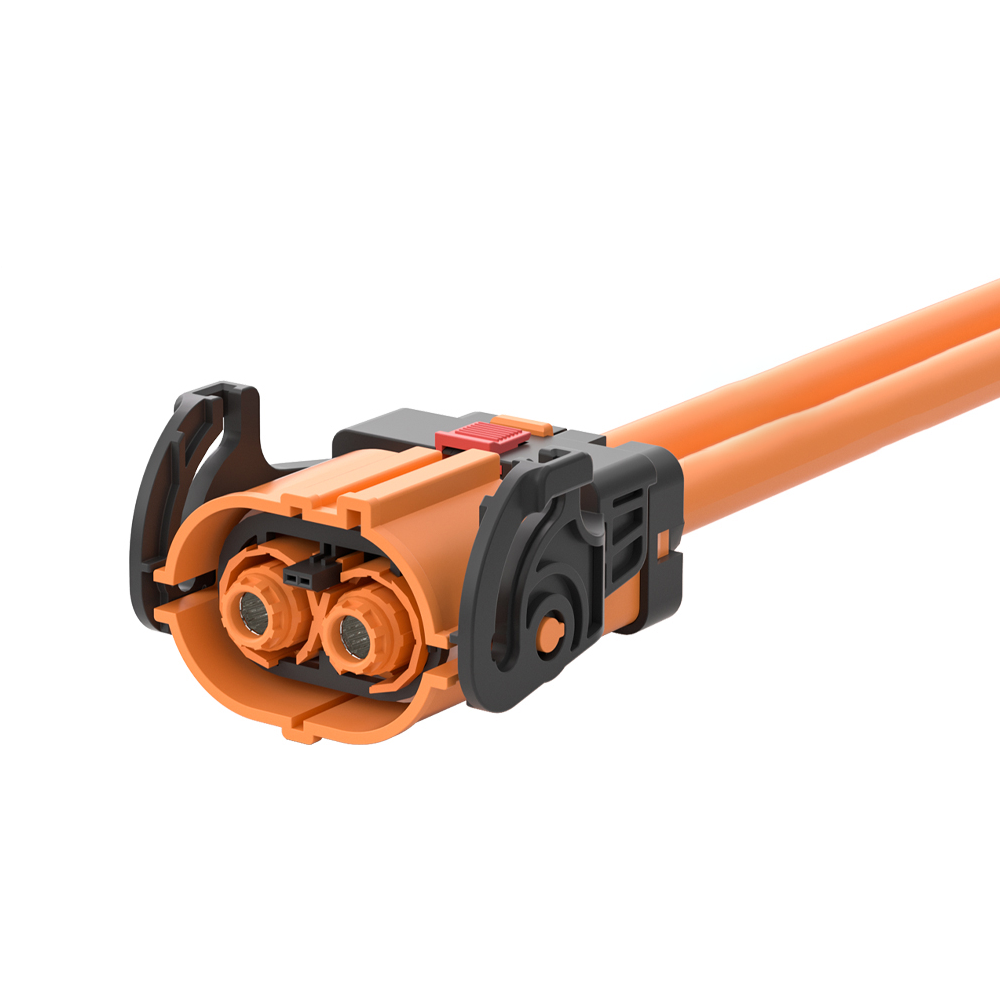

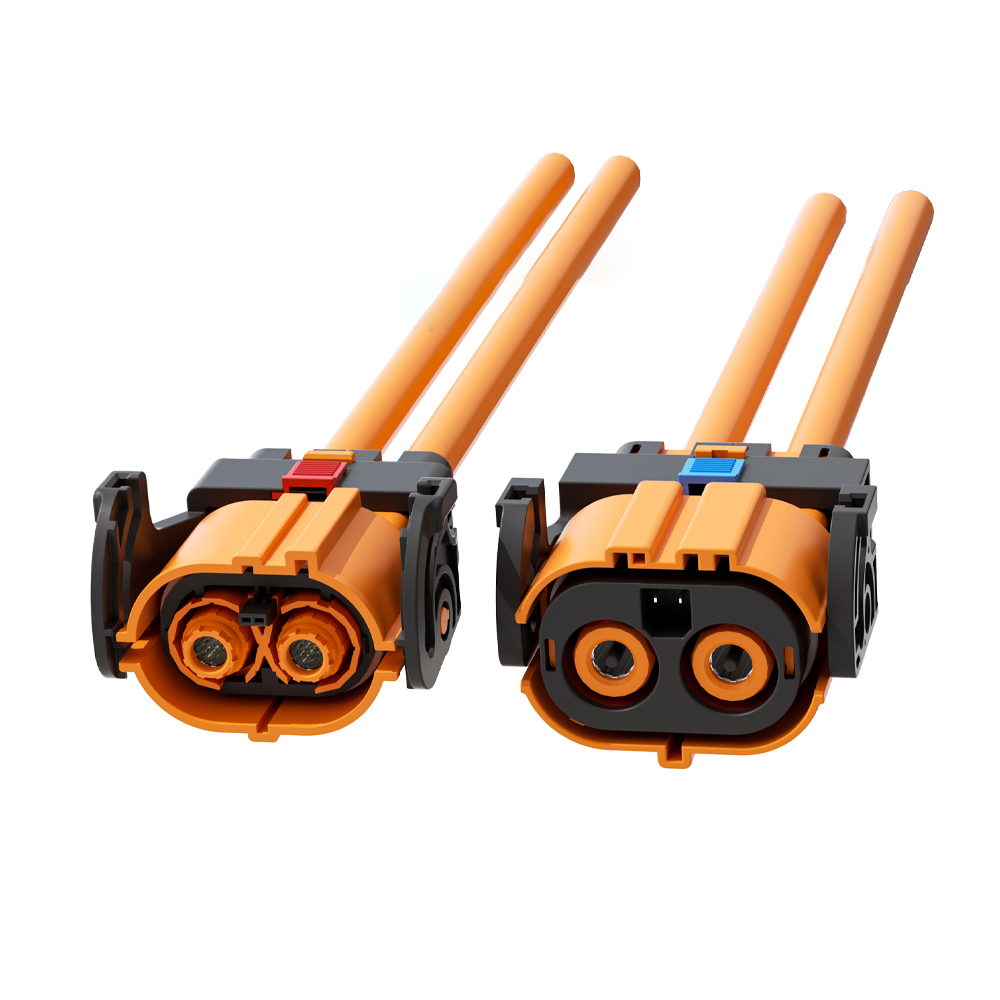

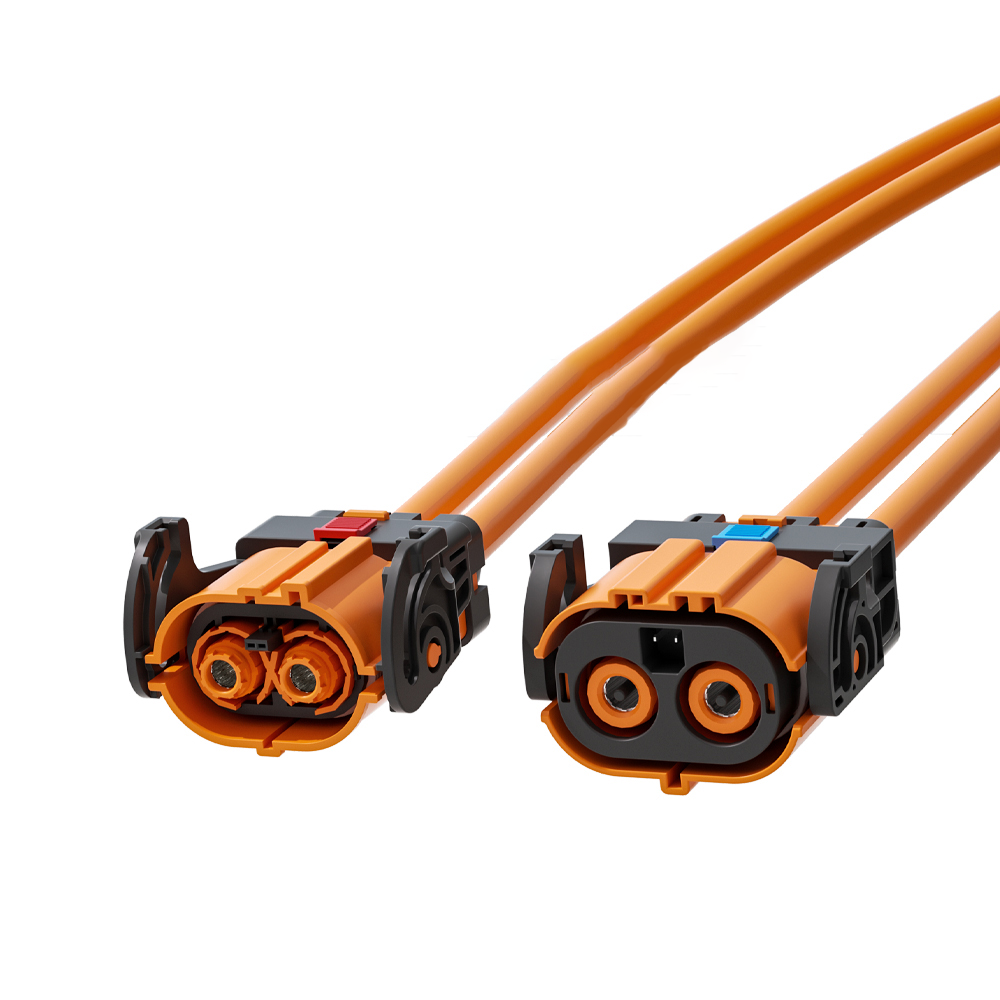

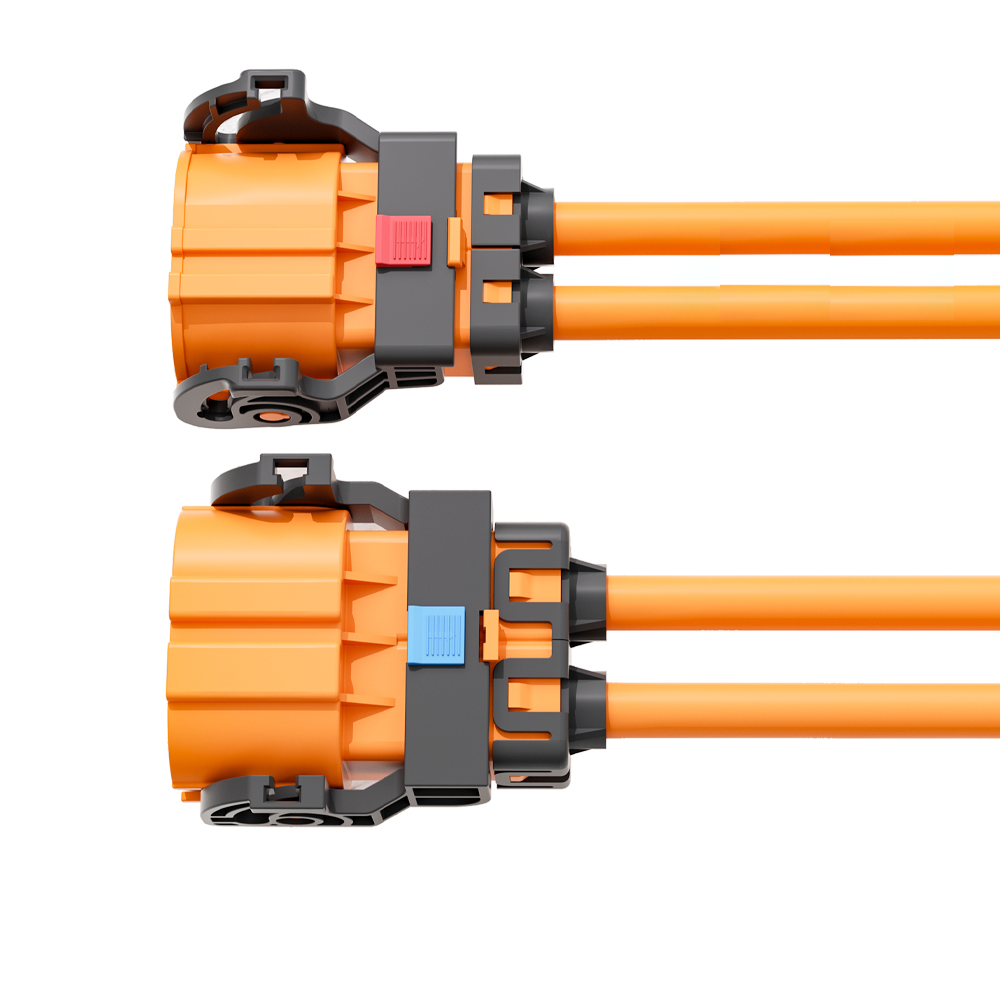

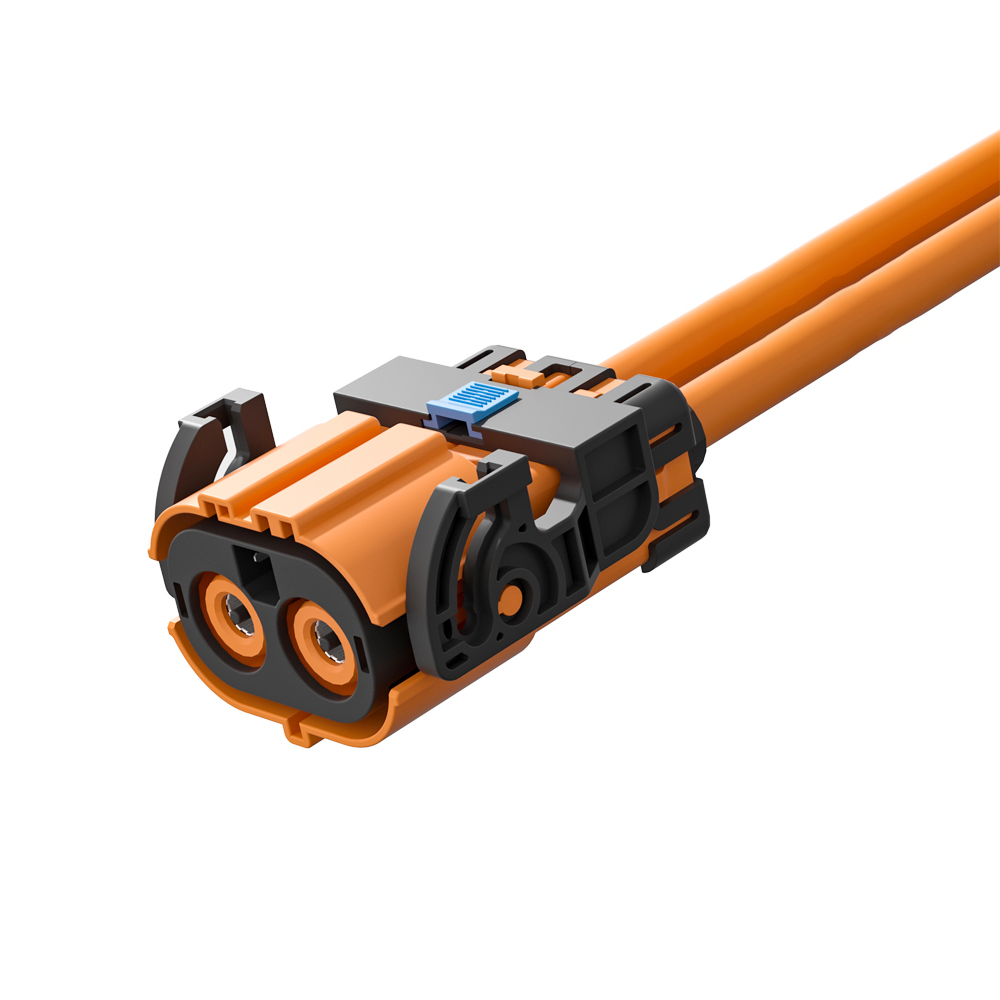

New Energy High Harness Connector Plug Assembly
A reliable high harness connector plug assembly engineered for new energy applications, providing safe, stable, and efficient electrical connections in high-voltage systems.
-
Designed for new energy high-voltage systems
-
CAE-optimized electrical and thermal performance
-
Integrated wiring harness for easy installation
-
High-conductivity copper terminals
-
Secure mechanical keying for correct mating
CONTACT US
- Product Details
- Application
- Features
- Parameter
- Message
CONTACT US
Connector Introduction
The New Energy High Harness Connector Plug Assembly is designed for secure and efficient power transmission in new energy systems, including energy storage, electric vehicles, and industrial power applications. Developed through advanced CAE simulation, it meets critical requirements for insertion force, insulation resistance, dielectric strength, and temperature rise. Featuring a robust insulated housing, high-conductivity copper terminals, and precise mechanical keying, this plug assembly ensures reliable mating and long-term stability. Its integrated wiring harness design simplifies installation while enhancing safety and performance in high-voltage environments.
Product Applications
Widely used in: new energy vehicle motors, electronic controls, battery PAKs, high-voltage distribution boxes, etc.
Features of Energy Storage Connector
IPX67 professional-grade waterproof; the connector insulation is made of PA66: high strength, high and low temperature resistance UL94/V0 flame retardant; through 1000 hours of high and low temperature impact testing, the connector fastens tightly, safely and reliably; the terminal connection is made of: copper T2, injection molding process, integrated professional mold.
Product Parameter Table
| Connector Type | Plug | Direction | Right Angle |
| Number of Pins | 2 Pin | Terminal | 8mm |
| Wire Gauge | 50mm2 | Key | A |
| Mounting Type | Cable Mount Receptacle | Housing Material | PA66 + GF |
| Feature | Waterproof | Contact Material | Brass Alloy |
| Contact Termination | Crimp | Rated Voltage | 1500V |
| Contact Finish | Silver Plated | Flammability | UL94 V-0 |
| Rated Current | 250A | Ingress Protection | IP67 |
| Insulation Resistance | ≥ 500MΩ | Operating Temperature | -40℃~125℃ |
